LED RGB CHIP 628NM 525 470NM SMD | Panasonic Electronic Components
Red, Green, Blue (RGB) 628nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3V Green, 2.95V Blue 4-SMD, No Lead

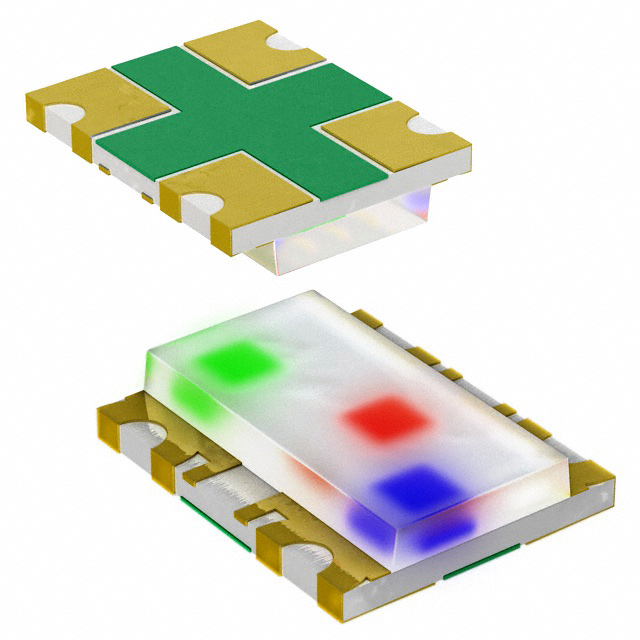

Images may differ
Unit Price ($ / pc.)
$
*
Available: 527 pcs.
Next delivery: 10017 pcs.
Available in 4 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The LNJ757W86RA is a common industry LED Indication - Discrete housed in a RoHS compliant 4-SMD, No Lead package by Panasonic Electronic Components made. The LNJ757W86RA is using SPQ 5000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Panasonic Electronic Components |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 30mcd Red, 90mcd Green, 15mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 0.70mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3V Green, 2.95V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 628nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 643nm Red, 520nm Green, 462nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | ESS Type LED |
| Size / Dimension | 1.30mm L x 1.05mm W |
| Height (Max) | 0.35mm |
| Base Product Number | LNJ757 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 5000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
