OSCILLATOR CMOS SMD | Microchip Technology

12 MHz TCXO CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead

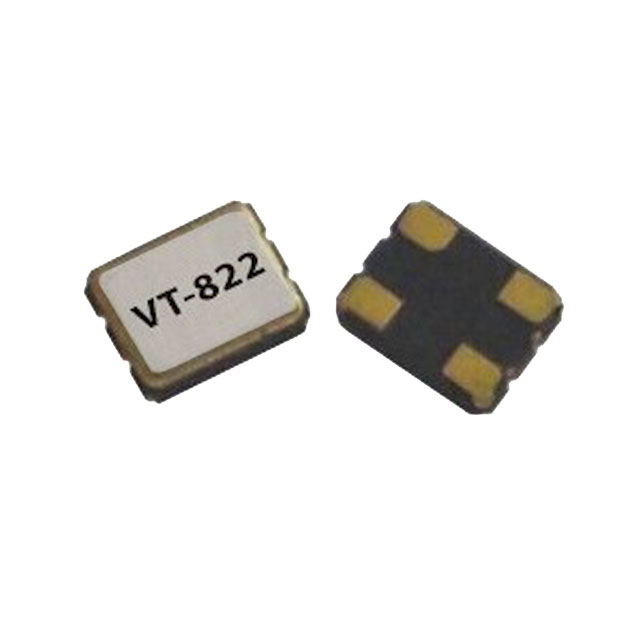

Images may differ

MPN: VT-822-EAE-2560-12M000

ManufacturerMicrochip Technology

Innovo Part NO.VT-822-EAE-2560-12M000_13179521

SeriesVT-822

Package / Case4-SMD, No Lead

SPQ.1000

Moisture Sensitivity LevelMSL 1

CertificateCE, CCC, ROHS

Product StatusAvailable

CategoriesCrystals, Oscillators, Resonators >> Oscillators

Technical specifications Download Datasheet

Unit Price ($ / pc.)

$ *

Available: 181 pcs.

Next delivery: 2751 pcs.

Available in 1 Weeks

Manufacturer Leadtime: **

Quantity

Price per unit*

100 pcs.

0 $

500 pcs.

0 $

1000 pcs.

0 $

3000 pcs.

0 $

10000 pcs.

0 $

*incl. VAT plus shipping costs

**Subject to prior sale

Add to BOM list Print to PDF

Description

The VT-822-EAE-2560-12M000 is a common industry Oscillators housed in a RoHS compliant 4-SMD, No Lead package by Microchip Technology made. The VT-822-EAE-2560-12M000 is using SPQ 1000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com

Technical specifications

Mfr	Microchip Technology
Series	VT-822
Package	Tape & Reel (TR)
Product Status	Obsolete
Base Resonator	Crystal
Type	TCXO
Frequency	12 MHz
Function	Enable/Disable
Output	CMOS
Voltage - Supply	3.3V
Frequency Stability	±2.5ppm
Absolute Pull Range (APR)	-
Operating Temperature	-40°C ~ 85°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	3mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.043" (1.10mm)
Current - Supply (Disable) (Max)	-
