OSCILLATOR CMOS SMD | Microchip Technology
156.25 MHz VCXO CMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead

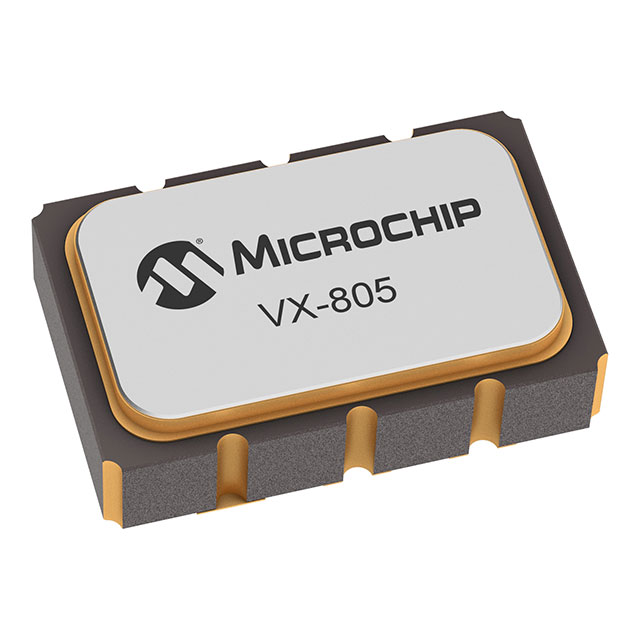

Images may differ
Unit Price ($ / pc.)
$
*
Available: 181 pcs.
Next delivery: 2751 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The VX-805-EAE-GEAN-156M250000TR is a common industry Oscillators housed in a RoHS compliant 6-SMD, No Lead package by Microchip Technology made. The VX-805-EAE-GEAN-156M250000TR is using SPQ 1000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Microchip Technology |
| Series | VX-805 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Base Resonator | Crystal |
| Type | VCXO |
| Frequency | 156.25 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | ±30ppm |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 25mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Current - Supply (Disable) (Max) | - |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
