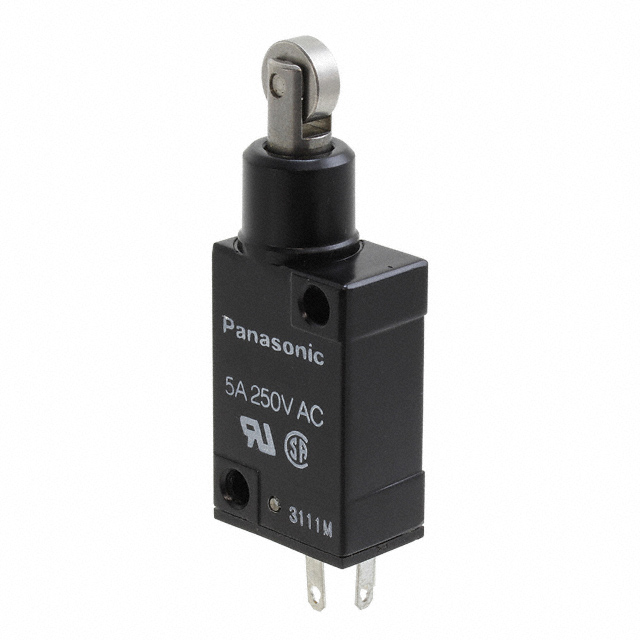

SWITCH SNAP ACTION SPDT 5A 125V | Panasonic Industrial Automation Sales
Switch SPDT Chassis Mount
Images may differ
Unit Price ($ / pc.)
$
*
Available: 527 pcs.
Next delivery: 10017 pcs.
Available in 4 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The AZ40029 is a common industry Limit Switches housed in a RoHS compliant Standar package by Panasonic Industrial Automation Sales made. The AZ40029 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Panasonic Industrial Automation Sales |
| Series | AZ4 |
| Package | Bulk |
| Product Status | Obsolete |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 5A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Roller Plunger |
| Mounting Type | Chassis Mount |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP64 - Dust Tight, Water Resistant |
| Features | - |
| Operating Force | 700gf |
| Release Force | 70gf |
| Operating Position | - |
| Pretravel | 0.040" (1.0mm) |
| Differential Travel | 0.006" (0.15mm) |
| Overtravel | 0.158" (4.0mm) |
| Operating Temperature | -20°C ~ 60°C |
| Electrical Life | 300,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Base Product Number | AZ4002 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
