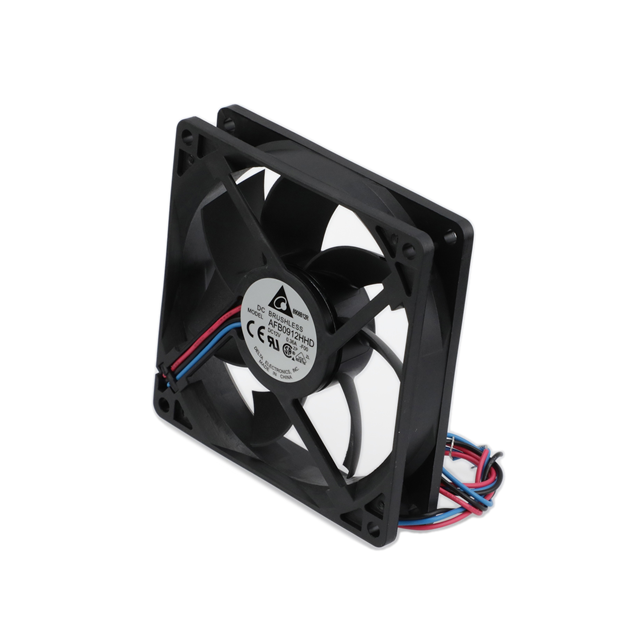

FAN AXIAL 92X20MM 12VDC WIRE | Delta Electronics
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 59.5 CFM (1.67m3/min) 3 Wire Leads
Images may differ
Unit Price ($ / pc.)
$
*
Available: 997 pcs.
Next delivery: 19887 pcs.
Available in 9 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The AFB0912HHD-F00 is a common industry DC Brushless Fans (BLDC) housed in a RoHS compliant Standar package by Delta Electronics made. The AFB0912HHD-F00 is using SPQ 88 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Delta Electronics |
| Series | AFB |
| Package | Box |
| Product Status | Obsolete |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 20.00mm |
| Air Flow | 59.5 CFM (1.67m3/min) |
| Static Pressure | 0.166 in H2O (41.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 38.0dB(A) |
| Power (Watts) | 2.88 W |
| RPM | 3000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | - |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.203 lb (92.08 g) |
| Current Rating (Amps) | 0.240A |
| Voltage Range | 7 ~ 13.8VDC |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | - |
| Base Product Number | AFB0912 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 88 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
