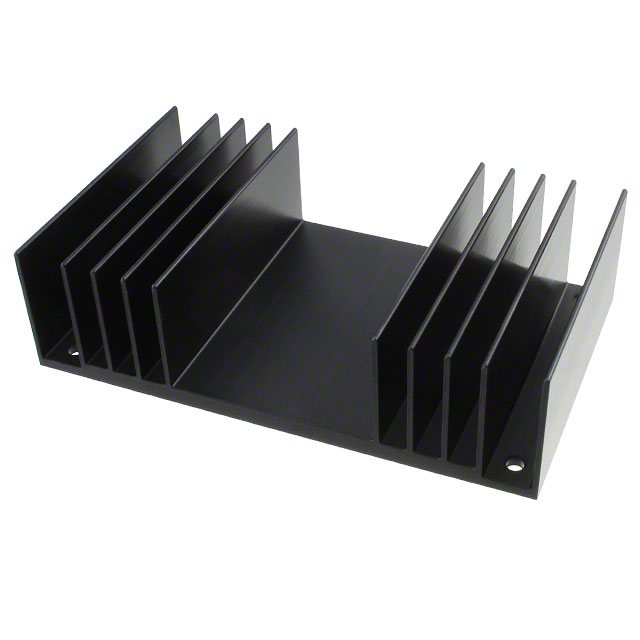

HEATSINK 3X5X1.38 POWER/IGBT | Wakefield-Vette
Heat Sink Power Modules Aluminum Board Level
Images may differ
Unit Price ($ / pc.)
17.55505 $
*
Available: 539 pcs.
Next delivery: 10269 pcs.
Available in 4 Weeks
Manufacturer Leadtime: 10 Weeks **
Quantity
Price per unit*
100 pcs.
16.677298 $
500 pcs.
15.799545 $
1000 pcs.
14.921793 $
3000 pcs.
14.04404 $
10000 pcs.
13.166288 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 396-1AB is a common industry Heat Sinks housed in a RoHS compliant Standar package by Wakefield-Vette made. The 396-1AB is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Wakefield-Vette |
| Series | 396 |
| Package | Bulk |
| Product Status | Active |
| Type | Board Level |
| Package Cooled | Power Modules |
| Attachment Method | Bolt On |
| Shape | Rectangular, Fins |
| Length | 3.000" (76.20mm) |
| Width | 5.000" (127.00mm) |
| Diameter | - |
| Fin Height | 1.382" (35.10mm) |
| Power Dissipation @ Temperature Rise | - |
| Thermal Resistance @ Forced Air Flow | 1.10°C/W @ 500 LFM |
| Thermal Resistance @ Natural | 1.80°C/W |
| Material | Aluminum |
| Material Finish | Black Anodized |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
