HEATSINK TO-220 9.8W ALUMINUM | CUI Devices

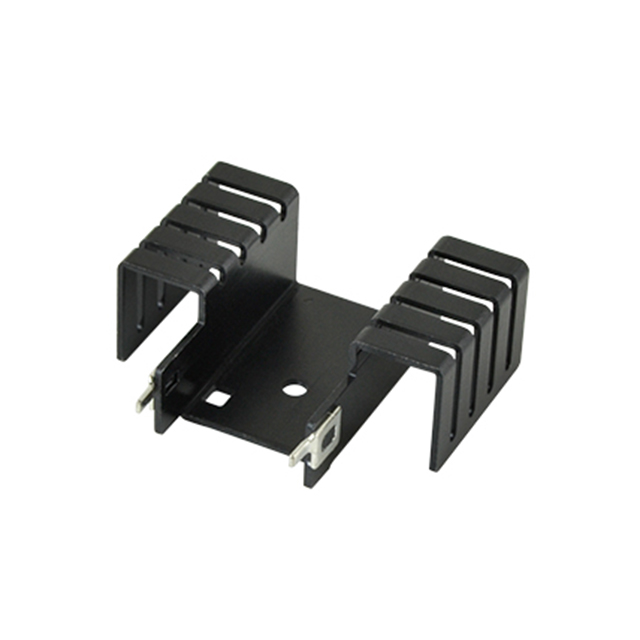

Heat Sink TO-220 Aluminum 9.8W @ 75°C Board Level, Vertical
Images may differ
Unit Price ($ / pc.)
0.565855 $
*
Available: 755 pcs.
Next delivery: 14805 pcs.
Available in 7 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
0.537562 $
500 pcs.
0.50927 $
1000 pcs.
0.480977 $
3000 pcs.
0.452684 $
10000 pcs.
0.424391 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The HSS-B20-05H is a common industry Heat Sinks housed in a RoHS compliant Standar package by CUI Devices made. The HSS-B20-05H is using SPQ 90 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | CUI Devices |
| Series | HSS |
| Package | Bag |
| Product Status | Active |
| Type | Board Level, Vertical |
| Package Cooled | TO-220 |
| Attachment Method | Bolt On and PC Pin |
| Shape | Rectangular, Fins |
| Length | 0.728" (18.50mm) |
| Width | 2.007" (50.98mm) |
| Diameter | - |
| Fin Height | 1.614" (41.00mm) |
| Power Dissipation @ Temperature Rise | 9.8W @ 75°C |
| Thermal Resistance @ Forced Air Flow | 2.01°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 7.65°C/W |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Base Product Number | HSS-B20 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 90 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
