TRANS NPN 800V 12A TO3P | NTE Electronics, Inc
Bipolar (BJT) Transistor NPN 800 V 12 A 15MHz 2.5 W Through Hole TO-3P

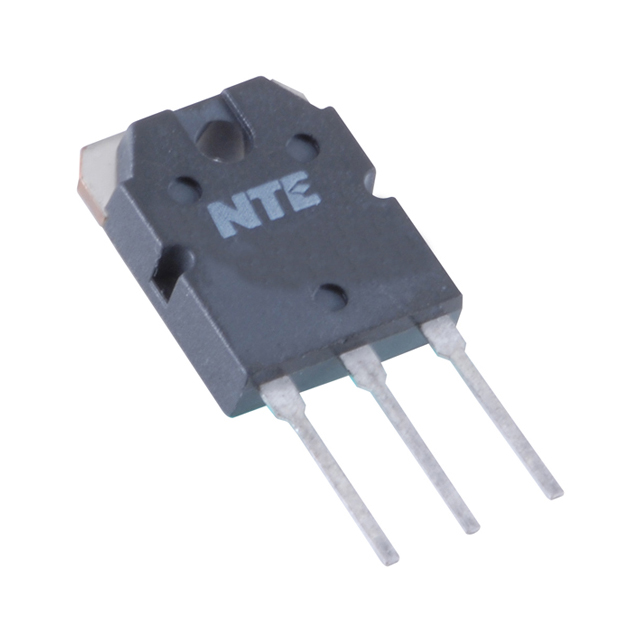

Images may differ
Unit Price ($ / pc.)
2.82 $
*
Available: 166 pcs.
Next delivery: 2436 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
2.679 $
500 pcs.
2.538 $
1000 pcs.
2.397 $
3000 pcs.
2.256 $
10000 pcs.
2.115 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The NTE2309 is a common industry Single Bipolar Transistors housed in a RoHS compliant TO-3P-3, SC-65-3 package by NTE Electronics, Inc made. The NTE2309 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | NTE Electronics, Inc |
| Series | - |
| Package | Bag |
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 12 A |
| Voltage - Collector Emitter Breakdown (Max) | 800 V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 600mA, 3A |
| Current - Collector Cutoff (Max) | 10μA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 400mA, 5V |
| Power - Max | 2.5 W |
| Frequency - Transition | 15MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
