TRANS NPN 120V 7A TO3PN | NTE Electronics, Inc
Bipolar (BJT) Transistor NPN 120 V 7 A 70 W Through Hole TO-3PN

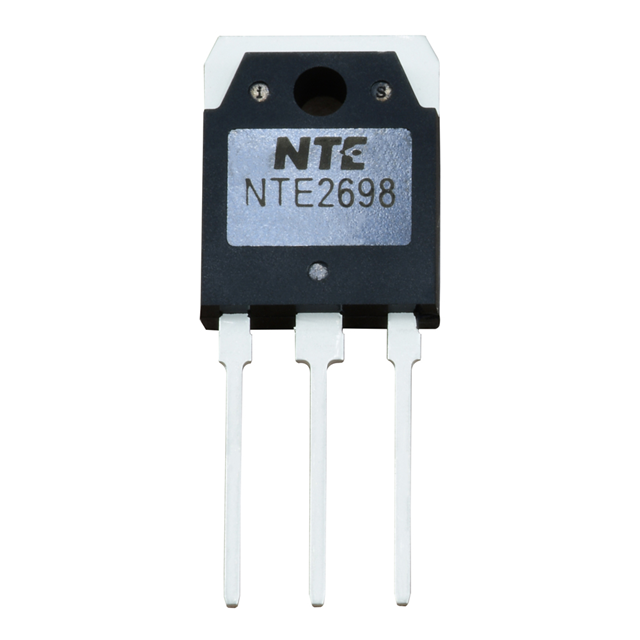

Images may differ
Unit Price ($ / pc.)
1.745 $
*
Available: 189 pcs.
Next delivery: 2919 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
1.65775 $
500 pcs.
1.5705 $
1000 pcs.
1.48325 $
3000 pcs.
1.396 $
10000 pcs.
1.30875 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The NTE2698 is a common industry Single Bipolar Transistors housed in a RoHS compliant TO-3P-3, SC-65-3 package by NTE Electronics, Inc made. The NTE2698 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | NTE Electronics, Inc |
| Series | - |
| Package | Bag |
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 7 A |
| Voltage - Collector Emitter Breakdown (Max) | 120 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 300mA, 3A |
| Current - Collector Cutoff (Max) | 100μA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 3A, 4V |
| Power - Max | 70 W |
| Frequency - Transition | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
