- | onsemi

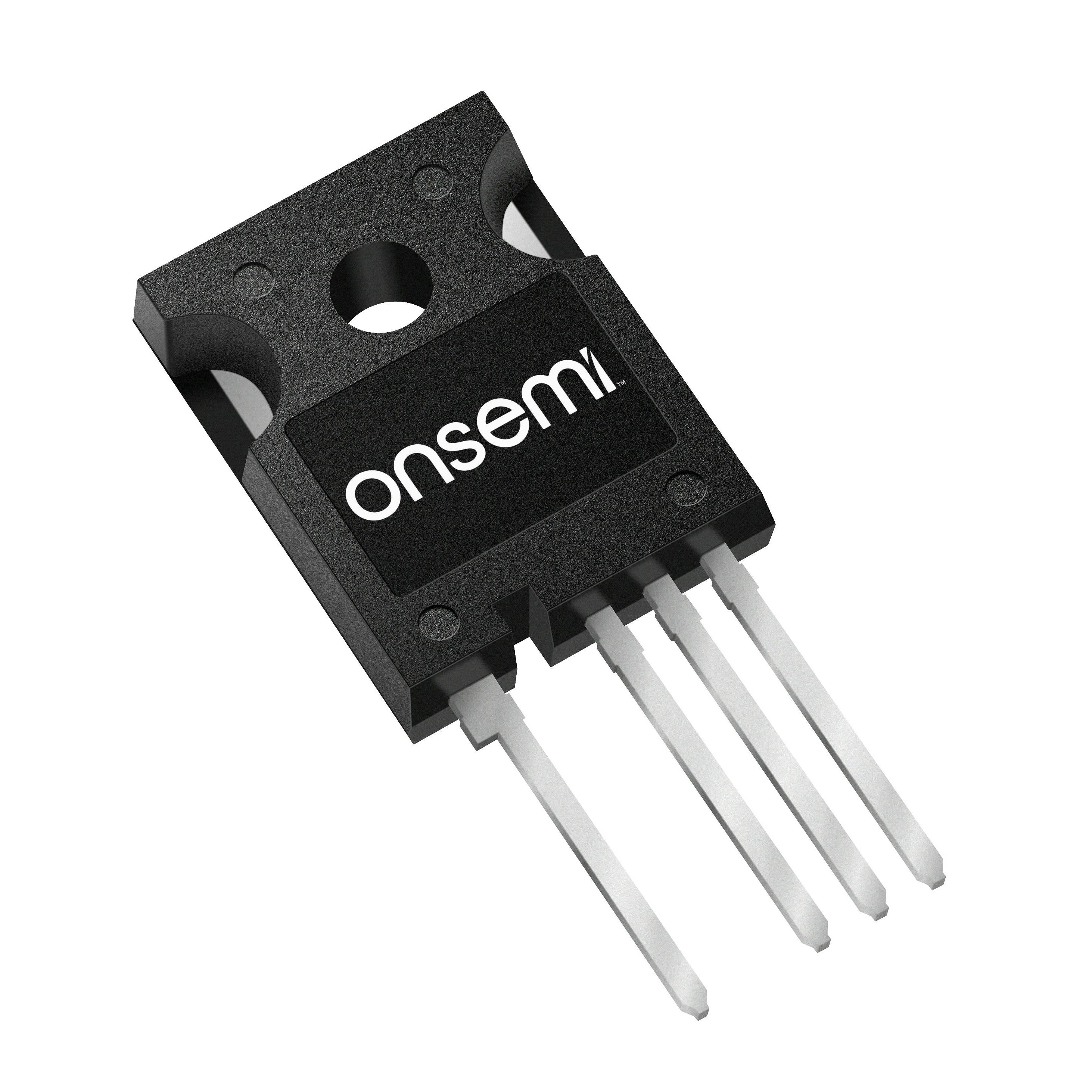

N-Channel 900 V 46A (Tc) 221W (Tc) Through Hole TO-247-4L
Images may differ
Unit Price ($ / pc.)
11.89971 $
*
Available: 185 pcs.
Next delivery: 2835 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 6 Weeks **
Quantity
Price per unit*
100 pcs.
11.304725 $
500 pcs.
10.709739 $
1000 pcs.
10.114754 $
3000 pcs.
9.519768 $
10000 pcs.
8.924783 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The NVH4L060N090SC1 is a common industry Single FETs, MOSFETs housed in a RoHS compliant TO-247-4 package by onsemi made. The NVH4L060N090SC1 is using SPQ 30 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 84mOhm @ 20A, 15V |
| Vgs(th) (Max) @ Id | 4.3V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 87 nC @ 15 V |
| Vgs (Max) | +22V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1770 pF @ 450 V |
| FET Feature | - |
| Power Dissipation (Max) | 221W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4L |
| Package / Case | TO-247-4 |
| Base Product Number | NVH4L060 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 30 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
