MOSFET N-CH 500V 19A 16SMPD | IXYS-RF
N-Channel 500 V 19A (Tc) 835W Surface Mount 16-SMPD

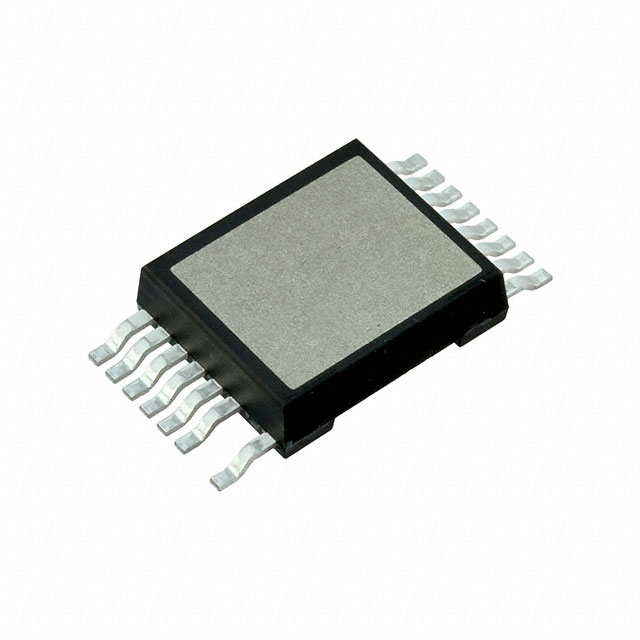

Images may differ
Unit Price ($ / pc.)
$
*
Available: 819 pcs.
Next delivery: 16149 pcs.
Available in 7 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The IXRFSM18N50 is a common industry Single FETs, MOSFETs housed in a RoHS compliant 16-BESOP (0.790", 20.11mm Width), 15 Leads, Exposed Pad package by IXYS-RF made. The IXRFSM18N50 is using SPQ 30 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | IXYS-RF |
| Series | SMPD |
| Package | Tube |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 340mOhm @ 9.5A, 20V |
| Vgs(th) (Max) @ Id | 6.5V @ 250μA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2250 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 835W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SMPD |
| Package / Case | 16-BESOP (0.790", 20.11mm Width), 15 Leads, Exposed Pad |
| Base Product Number | IXRFSM18 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 30 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
