MOSFET 2N-CH 25V 13A PWRCLIP-33 | onsemi
Mosfet Array 25V 13A (Ta), 20A (Tc), 27A (Ta), 60A (Tc) 800mW (Ta), 900mW (Ta) Surface Mount Powerclip-33

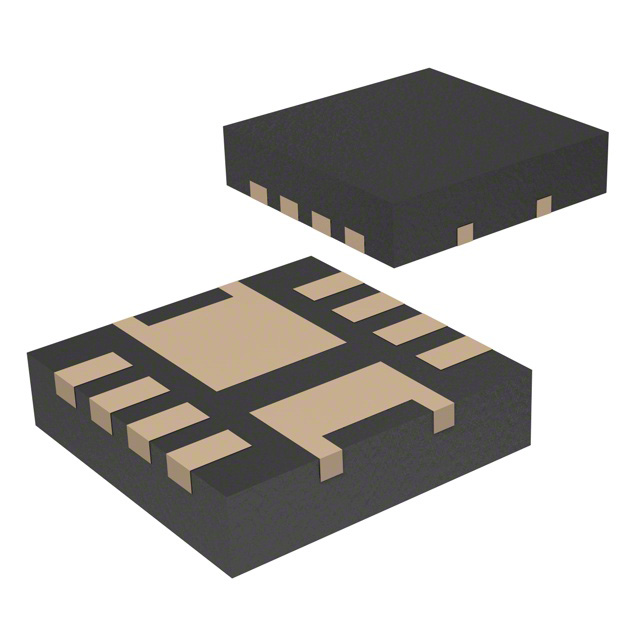

Images may differ
Unit Price ($ / pc.)
0.804065 $
*
Available: 154 pcs.
Next delivery: 2184 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 22 Weeks **
Quantity
Price per unit*
100 pcs.
0.763862 $
500 pcs.
0.723659 $
1000 pcs.
0.683455 $
3000 pcs.
0.643252 $
10000 pcs.
0.603049 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The FDPC8011S is a common industry FET, MOSFET Arrays housed in a RoHS compliant 8-PowerWDFN package by onsemi made. The FDPC8011S is using SPQ 3000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | onsemi |
| Series | PowerTrench |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 20A (Tc), 27A (Ta), 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 13A, 10V, 1.8mOhm @ 27A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250μA, 2.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V, 64nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1240pF @ 13V, 4335pF @ 13V |
| Power - Max | 800mW (Ta), 900mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | Powerclip-33 |
| Base Product Number | FDPC8 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 3000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
