RIGID SIDE B2B CONNECTOR, RIGHT | JAE Electronics
40 Position Connector Receptacle, Outer Shroud Contacts Surface Mount, Right Angle Gold

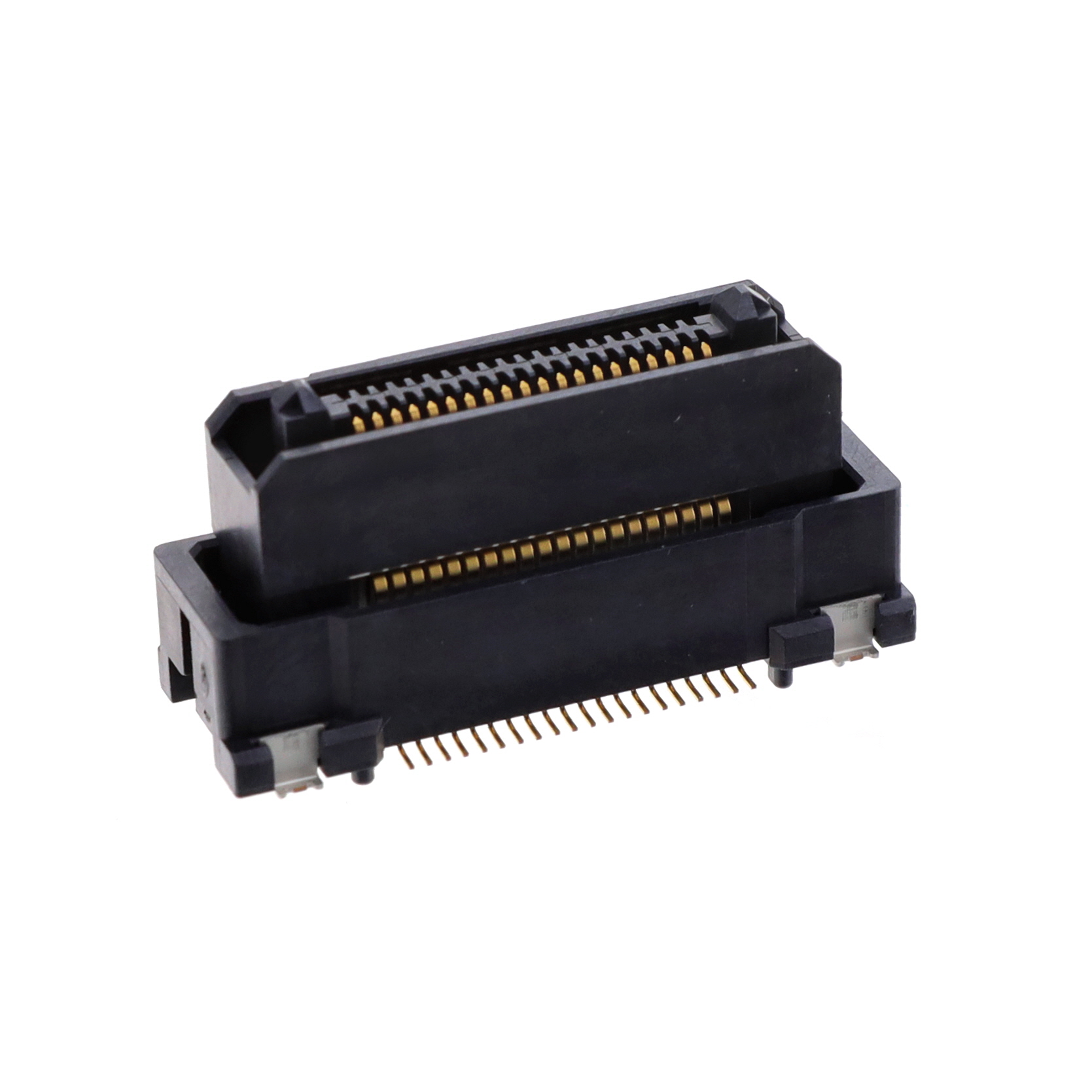

Images may differ
Unit Price ($ / pc.)
1.802355 $
*
Available: 196 pcs.
Next delivery: 3066 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 18 Weeks **
Quantity
Price per unit*
100 pcs.
1.712237 $
500 pcs.
1.62212 $
1000 pcs.
1.532002 $
3000 pcs.
1.441884 $
10000 pcs.
1.351766 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The MA01R040HAYBR600 is a common industry Arrays, Edge Type, Mezzanine (Board to Board) housed in a RoHS compliant Standar package by JAE Electronics made. The MA01R040HAYBR600 is using SPQ 600 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | JAE Electronics |
| Series | MA01 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Number of Positions | 40 |
| Pitch | 0.025" (0.64mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount, Right Angle |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | 4.00μin (0.100μm) |
| Mated Stacking Heights | - |
| Height Above Board | 0.260" (6.60mm) |
| Base Product Number | MA01R |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 600 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
