CONN PLUG 100POS SMD GOLD | 3M

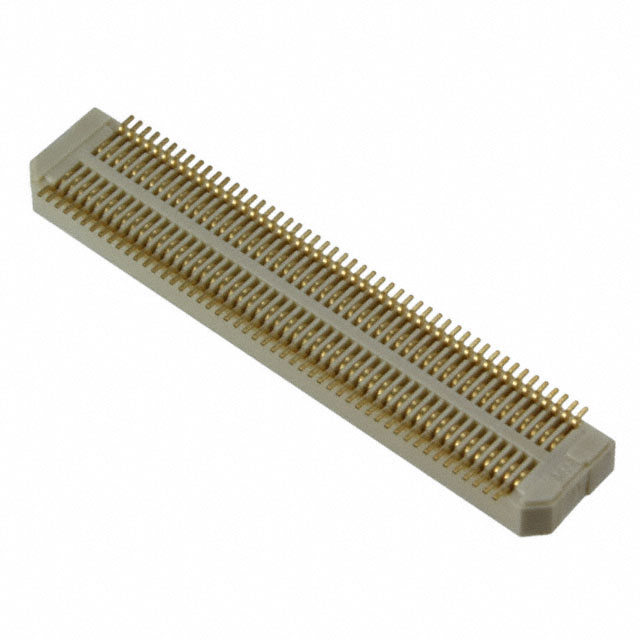

100 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Images may differ
Unit Price ($ / pc.)
$
*
Available: 232 pcs.
Next delivery: 3822 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The P05N-100PT-A-G is a common industry Arrays, Edge Type, Mezzanine (Board to Board) housed in a RoHS compliant Standar package by 3M made. The P05N-100PT-A-G is using SPQ 1500 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | 3M |
| Series | P05N |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Connector Type | Plug, Center Strip Contacts |
| Number of Positions | 100 |
| Pitch | 0.020" (0.50mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00μin (0.203μm) |
| Mated Stacking Heights | 3mm |
| Height Above Board | 0.094" (2.40mm) |
| Base Product Number | P05N |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1500 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
