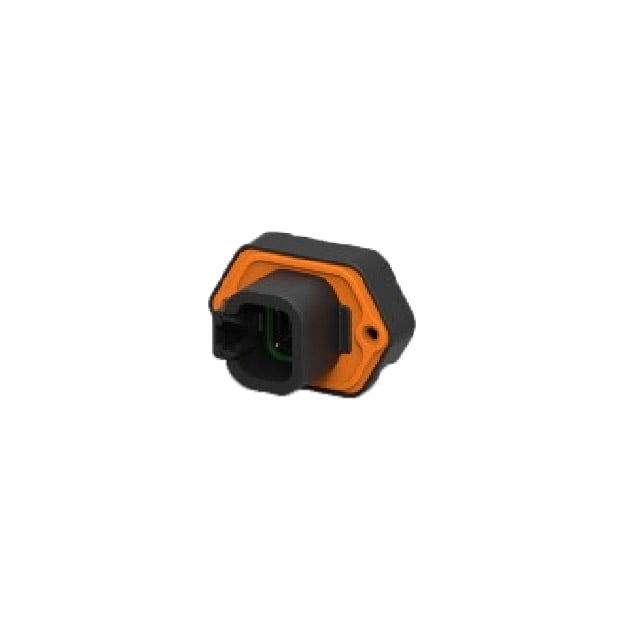

RECP ASM | TE Connectivity Deutsch Connectors
Connector Header Panel Mount, Through Hole 4 position 0.264" (6.71mm)
Images may differ
Unit Price ($ / pc.)
6.92572 $
*
Available: 154 pcs.
Next delivery: 2184 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 9 Weeks **
Quantity
Price per unit*
100 pcs.
6.579434 $
500 pcs.
6.233148 $
1000 pcs.
5.886862 $
3000 pcs.
5.540576 $
10000 pcs.
5.19429 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The DTP15-4P is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by TE Connectivity Deutsch Connectors made. The DTP15-4P is using SPQ 125 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | TE Connectivity Deutsch Connectors |
| Series | DTP |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.264" (6.71mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.400" (10.16mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.180" (4.57mm) |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 200VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | DTP15 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 125 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
