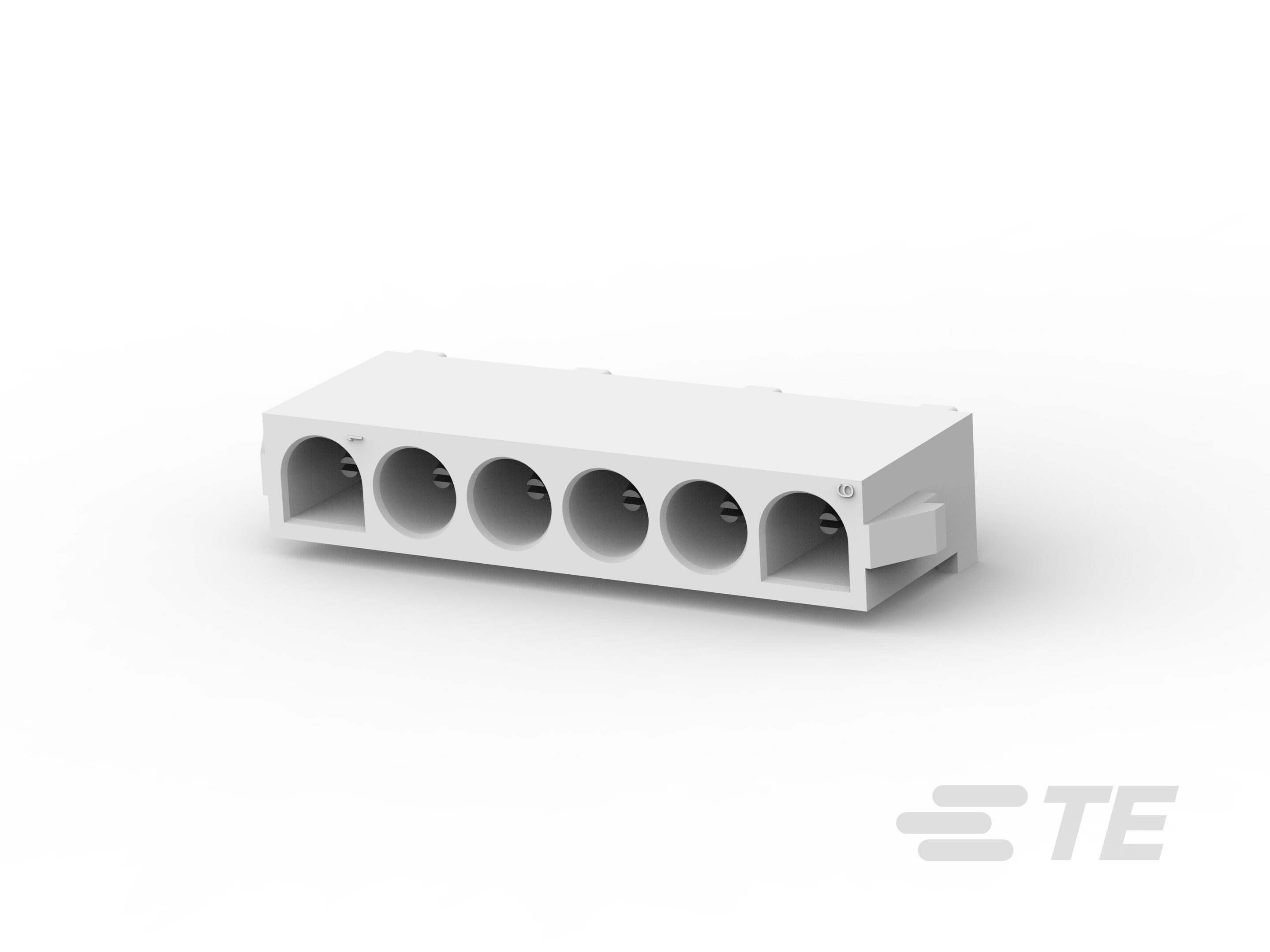

06P UMNL HDR ASSY R/A, PIN V0 GW | TE Connectivity AMP Connectors
Connector Header Through Hole, Right Angle 6 position 0.250" (6.35mm)
Images may differ
Unit Price ($ / pc.)
0.356965 $
*
Available: 154 pcs.
Next delivery: 2184 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
0.339117 $
500 pcs.
0.321269 $
1000 pcs.
0.30342 $
3000 pcs.
0.285572 $
10000 pcs.
0.267724 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1969812-1 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by TE Connectivity AMP Connectors made. The 1969812-1 is using SPQ 140 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | TE Connectivity AMP Connectors |
| Series | MATE-N-LOK |
| Package | Box |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.160" (4.06mm) |
| Overall Contact Length | - |
| Insulation Height | 0.360" (9.14mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0μin (3.81μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Mounting Flange |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 12A |
| Voltage Rating | 600VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | 1969812 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 140 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
