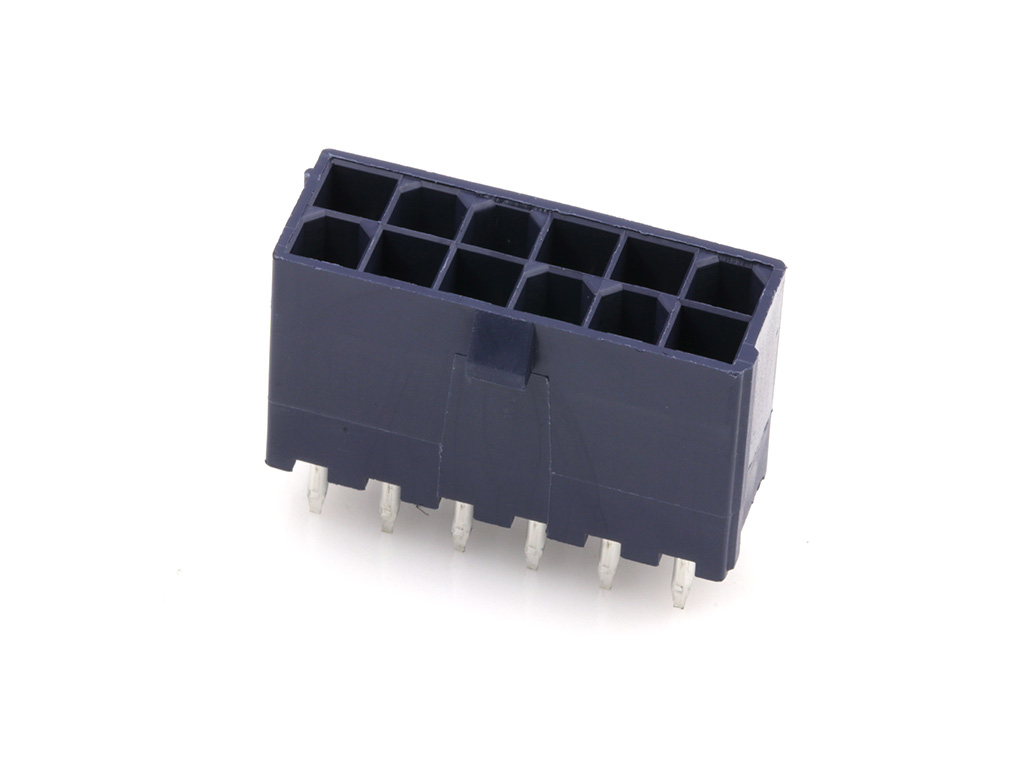

MINIFITJR VERT HDR NOPEGS 12CKT | Molex
Connector Header Through Hole 12 position 0.165 (4.20mm)
Images may differ
Unit Price ($ / pc.)
0.64868 $
*
Available: 154 pcs.
Next delivery: 2184 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
0.616246 $
500 pcs.
0.583812 $
1000 pcs.
0.551378 $
3000 pcs.
0.518944 $
10000 pcs.
0.48651 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1724470212 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 1724470212 is using SPQ 60 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Mini-Fit Jr 172447 |
| Package | Tray |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Insulation Color | Black |
| Current Rating (Amps) | 9A |
| Voltage Rating | 600V |
| Mated Stacking Heights | 5mm |
| Contact Finish Thickness - Post | 39.4μin (1.00μm) |
| Applications | General Purpose |
| Base Product Number | 172447 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 60 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
