CMC HEADER ASSY 48PIN FOR GENERA | Molex
Connector Header Board Edge, Through Hole, Right Angle 48 position

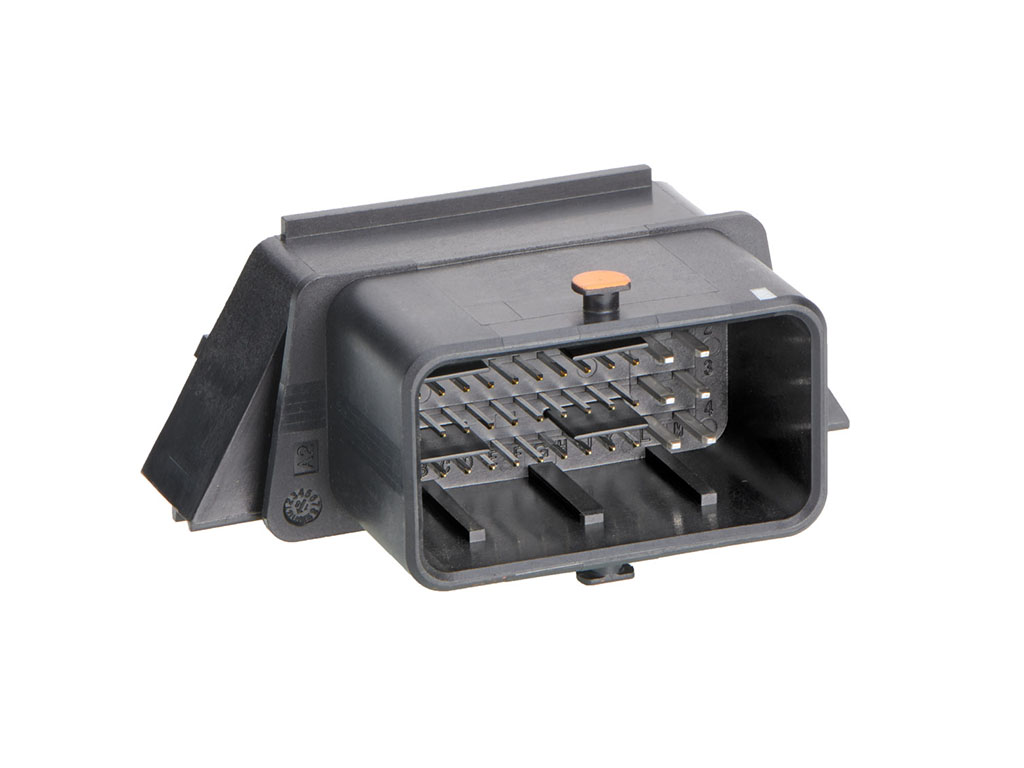

Images may differ
Unit Price ($ / pc.)
5.874625 $
*
Available: 157 pcs.
Next delivery: 2247 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 18 Weeks **
Quantity
Price per unit*
100 pcs.
5.580894 $
500 pcs.
5.287163 $
1000 pcs.
4.993431 $
3000 pcs.
4.6997 $
10000 pcs.
4.405969 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 5007620482 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 5007620482 is using SPQ 80 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | CMC 500762 |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 48 |
| Number of Rows | 4 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 1.063" (27.00mm) |
| Contact Shape | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide, Board Lock, Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive |
| Base Product Number | 500762 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 80 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
