CONNECTOR | Omron Electronics Inc-EMC Div
Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)

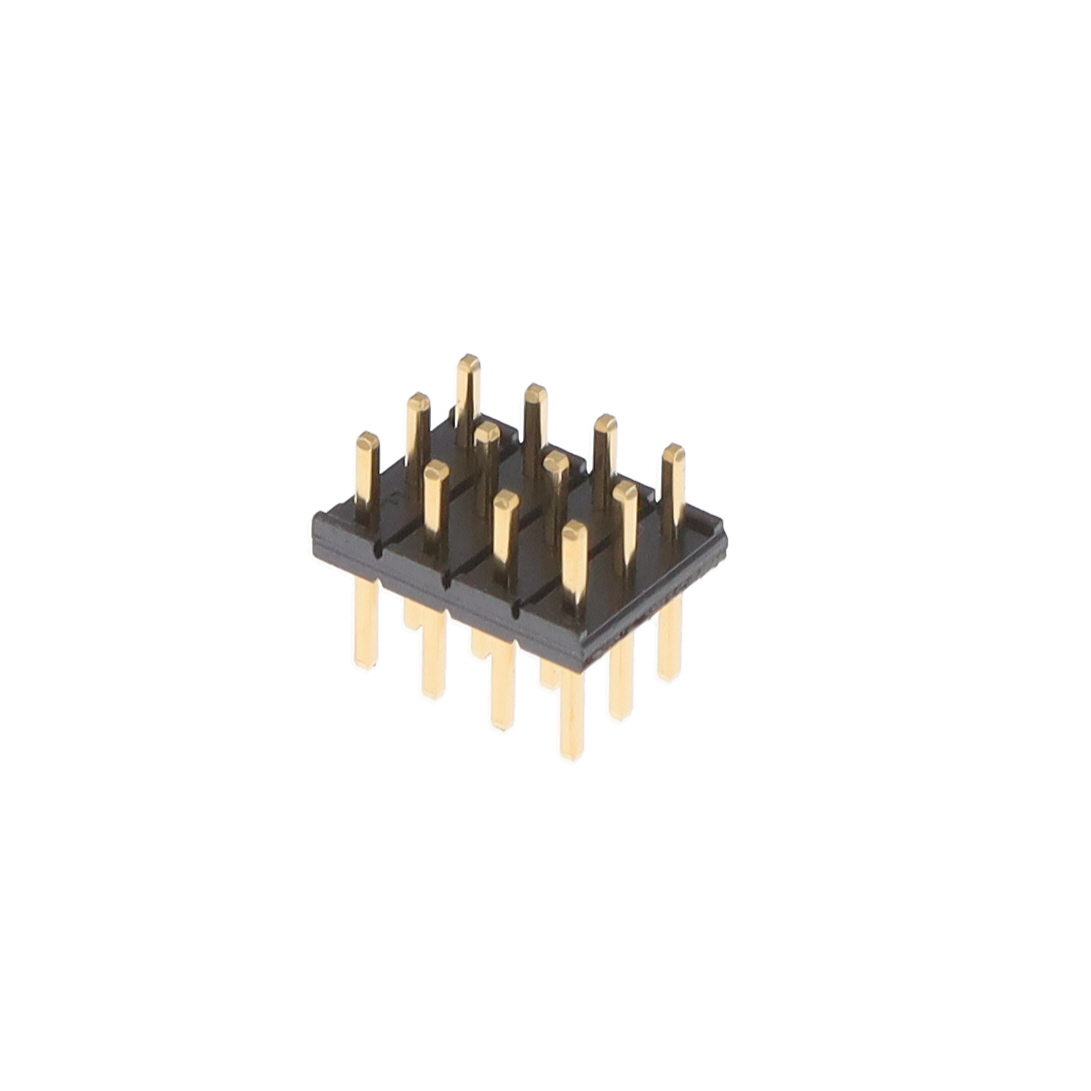

Images may differ
Unit Price ($ / pc.)
0.578425 $
*
Available: 163 pcs.
Next delivery: 2373 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 14 Weeks **
Quantity
Price per unit*
100 pcs.
0.549504 $
500 pcs.
0.520583 $
1000 pcs.
0.491661 $
3000 pcs.
0.46274 $
10000 pcs.
0.433819 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The XJ8D-1211 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Omron Electronics Inc-EMC Div made. The XJ8D-1211 is using SPQ 400 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Omron Electronics Inc-EMC Div |
| Series | XJ8 |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.169" (4.30mm) |
| Contact Length - Post | 0.110" (2.80mm) |
| Overall Contact Length | 0.339" (8.60mm) |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90μin (0.150μm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 300VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | XJ8D |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 400 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
