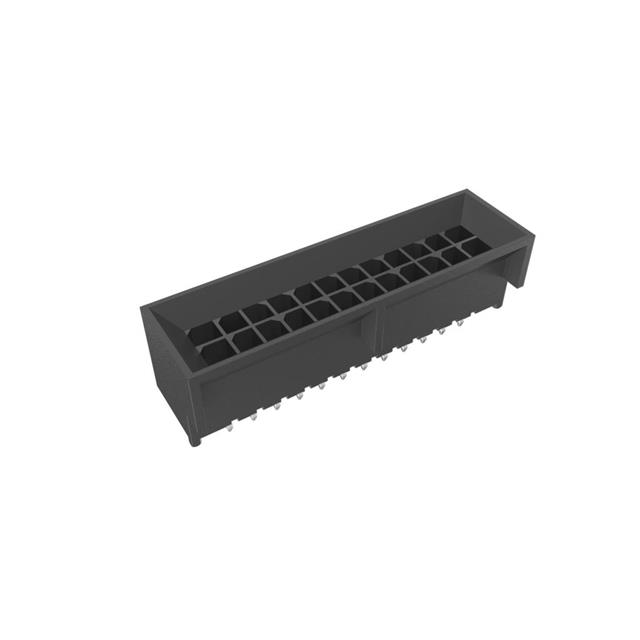

3.0 PITCH PCB HEADER STR | Amphenol ICC (FCI)
Connector Header Through Hole 24 position 0.118 (3.00mm)
Images may differ
Unit Price ($ / pc.)
0.921365 $
*
Available: 166 pcs.
Next delivery: 2436 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 15 Weeks **
Quantity
Price per unit*
100 pcs.
0.875297 $
500 pcs.
0.829229 $
1000 pcs.
0.78316 $
3000 pcs.
0.737092 $
10000 pcs.
0.691024 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 10138980-2411LF is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Amphenol ICC (FCI) made. The 10138980-2411LF is using SPQ 80 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Amphenol ICC (FCI) |
| Series | Minitek Pwr 3.0 |
| Package | Tray |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.457" (11.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | 10138980 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 80 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
