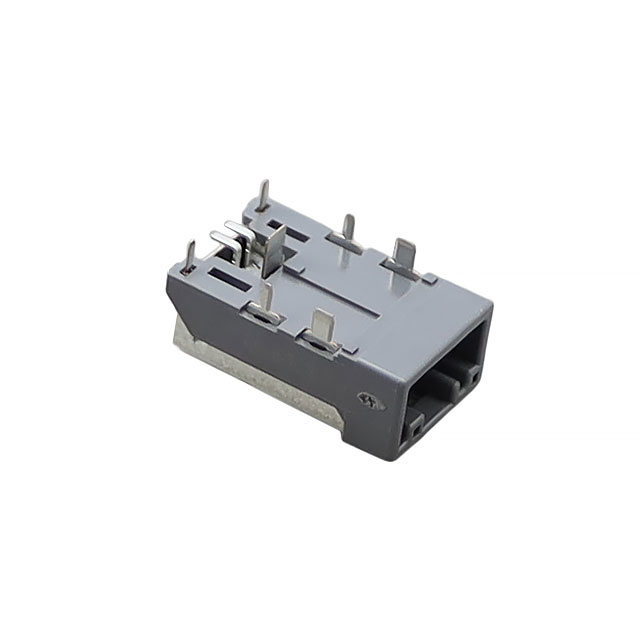

CONN PIN HEADER 2 POS R/A | JAE Electronics
Connector Header Surface Mount, Right Angle; Through Hole 2 position 0.079" (2.00mm)
Images may differ
Unit Price ($ / pc.)
1.215535 $
*
Available: 173 pcs.
Next delivery: 2583 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 15 Weeks **
Quantity
Price per unit*
100 pcs.
1.154758 $
500 pcs.
1.093982 $
1000 pcs.
1.033205 $
3000 pcs.
0.972428 $
10000 pcs.
0.911651 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The MX48A02HQ6 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by JAE Electronics made. The MX48A02HQ6 is using SPQ 26 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | JAE Electronics |
| Series | MX48 |
| Package | Tray |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.327" (8.30mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Board Guide, Shielded |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | MX48A02H |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 26 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
