SCL 1.0 HDR DRVT USP 076 SMT G3 | TE Connectivity AMP Connectors

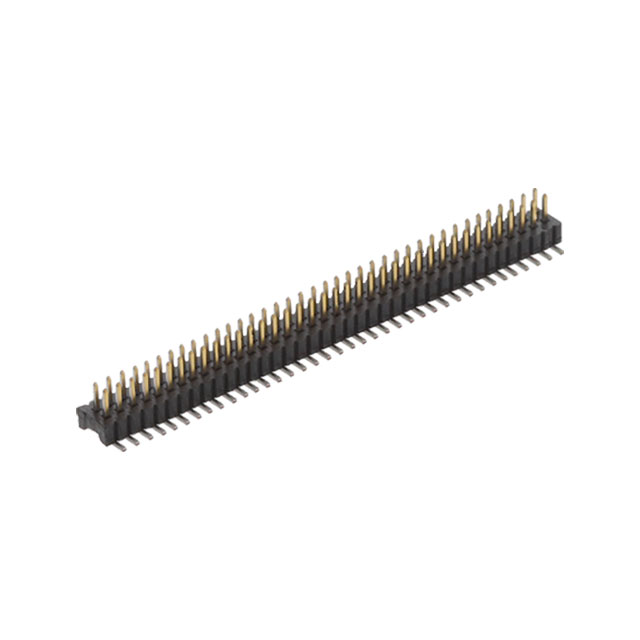

Connector Header Surface Mount 76 position 0.039 (1.00mm)
Images may differ
Unit Price ($ / pc.)
4.937675 $
*
Available: 196 pcs.
Next delivery: 3066 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 19 Weeks **
Quantity
Price per unit*
100 pcs.
4.690791 $
500 pcs.
4.443908 $
1000 pcs.
4.197024 $
3000 pcs.
3.95014 $
10000 pcs.
3.703256 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1MM-HU-D38-VS-00-H-TBP is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by TE Connectivity AMP Connectors made. The 1MM-HU-D38-VS-00-H-TBP is using SPQ 13 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | TE Connectivity AMP Connectors |
| Series | AMPMODU 1MM |
| Package | Box |
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 76 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.083" (2.10mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0μin (0.76μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | 30VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 12.0μin (0.30μm) |
| Applications | - |
| Base Product Number | 1MM-HU-D |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 13 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
