1.25WB SINGLE ST ASSY 9CKT EMBPK | Molex
Connector Header Surface Mount 9 position 0.049 (1.25mm)

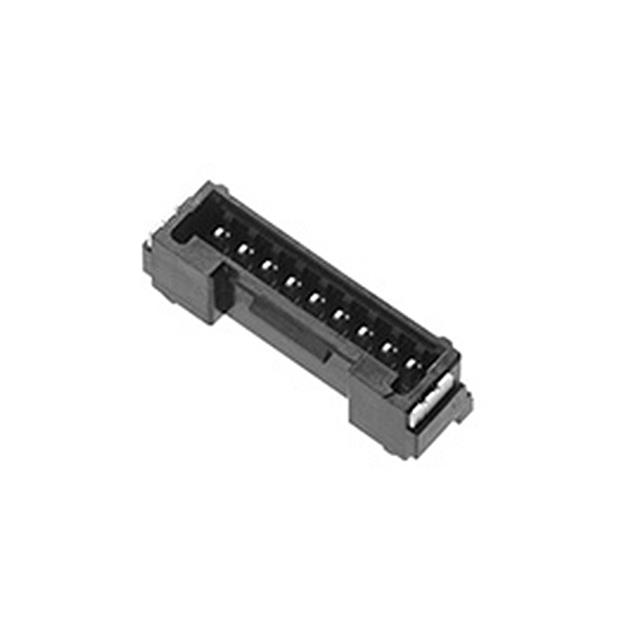

Images may differ
Unit Price ($ / pc.)
0.275 $
*
Available: 197 pcs.
Next delivery: 3087 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0.26125 $
500 pcs.
0.2475 $
1000 pcs.
0.23375 $
3000 pcs.
0.22 $
10000 pcs.
0.20625 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 5055680971 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 5055680971 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Micro-Lock PLUS 505568 |
| Package | Box |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.165" (4.20mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4μin (1.00μm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 50VAC/DC |
| Mated Stacking Heights | 7.4mm |
| Contact Finish Thickness - Post | 39.4μin (1.00μm) |
| Applications | Automotive, General Purpose, Industrial |
| Base Product Number | 505568 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
