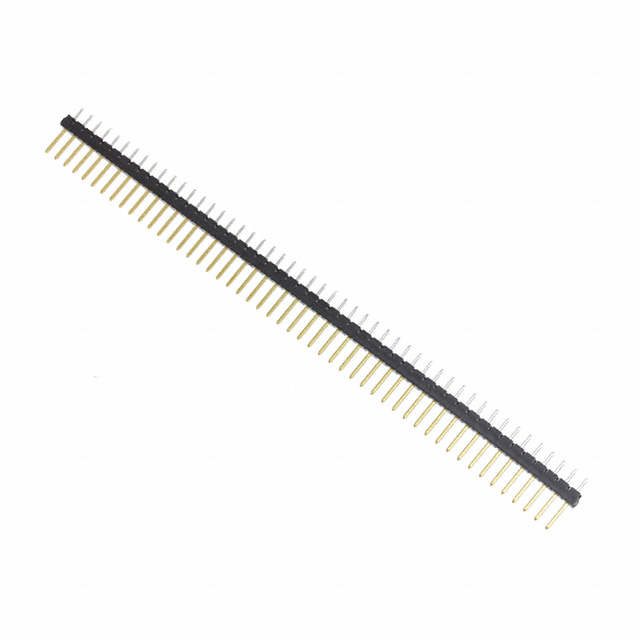

CONN HEADER VERT 50POS 2.54MM | Omron Electronics Inc-EMC Div
Connector Header Through Hole 50 position 0.100 (2.54mm)
Images may differ
Unit Price ($ / pc.)
2.518405 $
*
Available: 232 pcs.
Next delivery: 3822 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 14 Weeks **
Quantity
Price per unit*
100 pcs.
2.392485 $
500 pcs.
2.266565 $
1000 pcs.
2.140644 $
3000 pcs.
2.014724 $
10000 pcs.
1.888804 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The XG8A-5031 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Omron Electronics Inc-EMC Div made. The XG8A-5031 is using SPQ 100 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Omron Electronics Inc-EMC Div |
| Series | XG8 |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.236" (6.00mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | 0.453" (11.50mm) |
| Insulation Height | 0.106" (2.70mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90μin (0.150μm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass, Nickel |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 300V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7μin (2.00μm) |
| Applications | - |
| Base Product Number | XG8A |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 100 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
