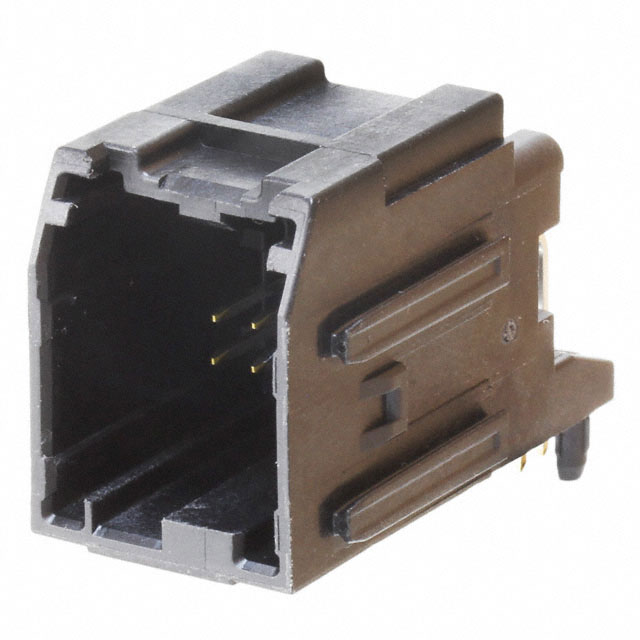

CONN HEADER R/A 8POS 2.54MM | Molex
Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)
Images may differ
Unit Price ($ / pc.)
0.587555 $
*
Available: 525 pcs.
Next delivery: 9975 pcs.
Available in 4 Weeks
Manufacturer Leadtime: 18 Weeks **
Quantity
Price per unit*
100 pcs.
0.558177 $
500 pcs.
0.5288 $
1000 pcs.
0.499422 $
3000 pcs.
0.470044 $
10000 pcs.
0.440666 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 346916080 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 346916080 is using SPQ 1008 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Stac64 34691 |
| Package | Tray |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.119" (3.02mm) |
| Overall Contact Length | - |
| Insulation Height | 0.868" (22.05mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Cartridge Brass |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive |
| Base Product Number | 034691 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1008 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
