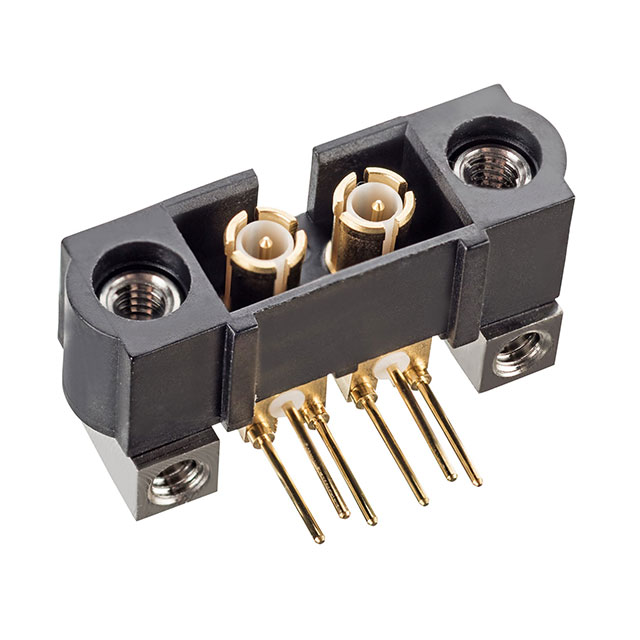

CONN HEADER R/A 2POS 4MM | Harwin Inc.
Connector Header Through Hole, Right Angle 2 (Coax) position 0.157" (4.00mm)
Images may differ
Unit Price ($ / pc.)
18.23442 $
*
Available: 654 pcs.
Next delivery: 12684 pcs.
Available in 6 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
17.322699 $
500 pcs.
16.410978 $
1000 pcs.
15.499257 $
3000 pcs.
14.587536 $
10000 pcs.
13.675815 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The M80-MH314M5-02 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Harwin Inc. made. The M80-MH314M5-02 is using SPQ 14 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | Datamate Coax |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin, Coaxial |
| Pitch - Mating | 0.157" (4.00mm) |
| Number of Positions | 2 (Coax) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Mating Flange, Mounting Flange |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | M80-MH3 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 14 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
