CONN HEADER VERT 72POS | Molex

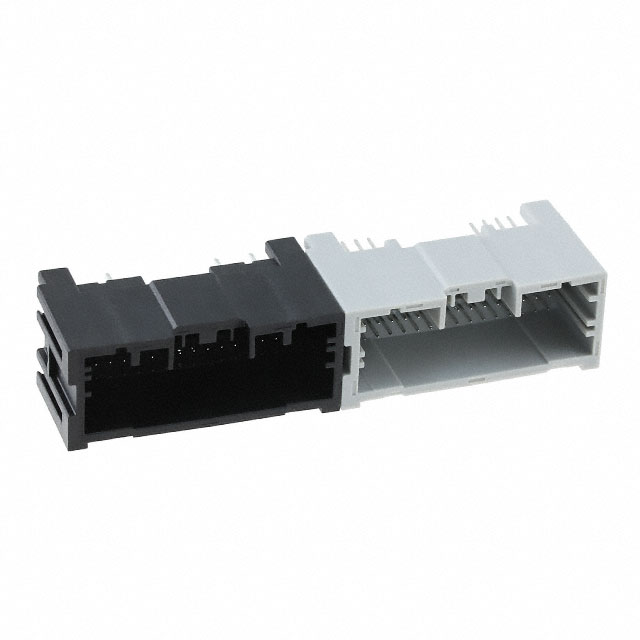

Connector Header Through Hole 72 (34 + 38) position
Images may differ
Unit Price ($ / pc.)
$
*
Available: 655 pcs.
Next delivery: 12705 pcs.
Available in 6 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 349601220 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 349601220 is using SPQ 400 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Mini50 34960 |
| Package | Tray |
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | - |
| Number of Positions | 72 (34 + 38) |
| Number of Rows | 3 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.301" (7.65mm) |
| Overall Contact Length | - |
| Insulation Height | 0.697" (17.70mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive |
| Base Product Number | 034960 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 400 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
