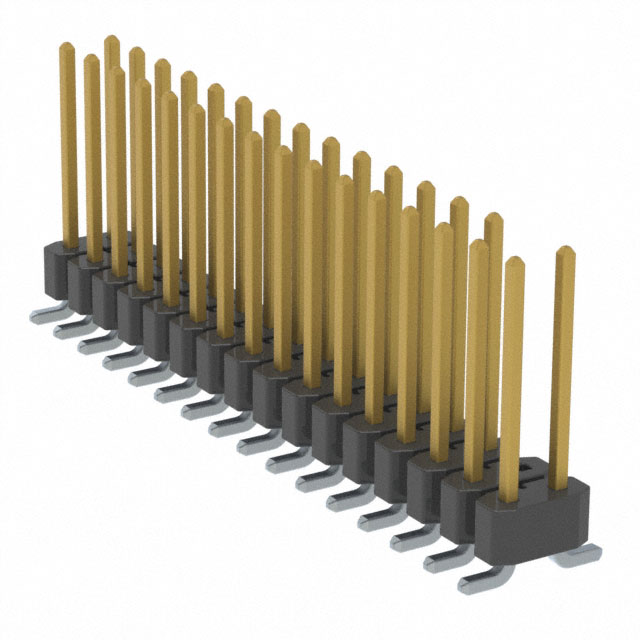

CONN HEADER SMD 32POS 2.54MM | Samtec Inc.
Connector Header Surface Mount 32 position 0.100 (2.54mm)
Images may differ
Unit Price ($ / pc.)
3.909645 $
*
Available: 814 pcs.
Next delivery: 16044 pcs.
Available in 7 Weeks
Manufacturer Leadtime: 5 Weeks **
Quantity
Price per unit*
100 pcs.
3.714163 $
500 pcs.
3.518681 $
1000 pcs.
3.323198 $
3000 pcs.
3.127716 $
10000 pcs.
2.932234 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The TSM-116-03-S-DV-004 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Samtec Inc. made. The TSM-116-03-S-DV-004 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Samtec Inc. |
| Series | TSM |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | 31 |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.420" (10.67mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0μin (0.76μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | TSM-116 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
