CONN HEADER R/A 4POS 2.54MM | Samtec Inc.

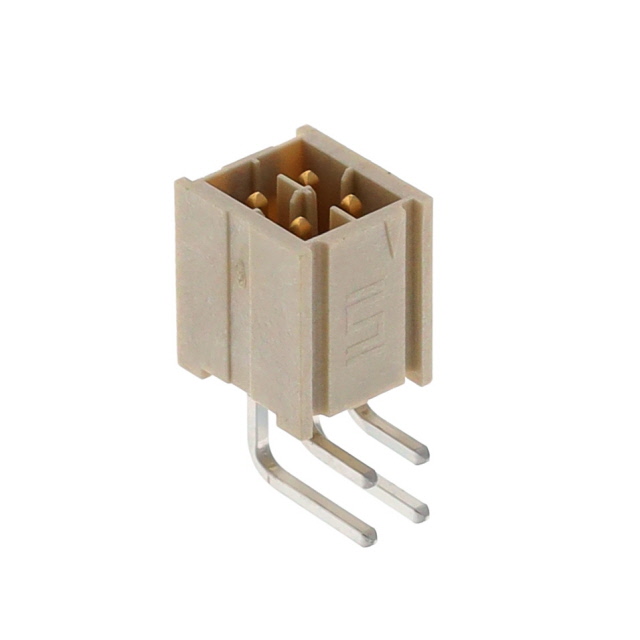

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Images may differ
Unit Price ($ / pc.)
1.63292 $
*
Available: 855 pcs.
Next delivery: 16905 pcs.
Available in 8 Weeks
Manufacturer Leadtime: 6 Weeks **
Quantity
Price per unit*
100 pcs.
1.551274 $
500 pcs.
1.469628 $
1000 pcs.
1.387982 $
3000 pcs.
1.306336 $
10000 pcs.
1.22469 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The IPL1-102-01-SM-D-RA-K is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Samtec Inc. made. The IPL1-102-01-SM-D-RA-K is using SPQ 87 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Samtec Inc. |
| Series | Mini Mate IPL1 |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.215" (5.46mm) |
| Contact Length - Post | 0.085" (2.16mm) |
| Overall Contact Length | - |
| Insulation Height | 0.290" (7.37mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0μin (0.76μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | 675VAC, 954VDC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | IPL1-102 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 87 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
