MGRID SHRD HDR SMT /OPEG 2.5SNLF | Molex

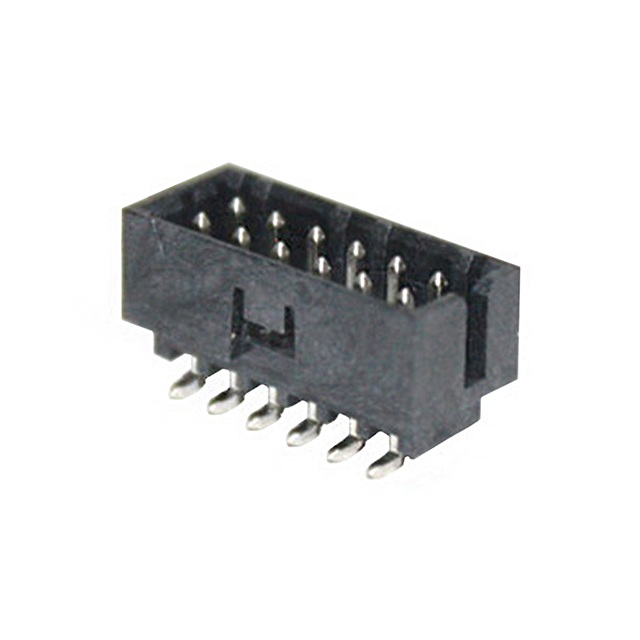

Connector Header Surface Mount 30 position 0.079 (2.00mm)
Images may differ
Unit Price ($ / pc.)
0.784205 $
*
Available: 1024 pcs.
Next delivery: 20454 pcs.
Available in 9 Weeks
Manufacturer Leadtime: 19 Weeks **
Quantity
Price per unit*
100 pcs.
0.744995 $
500 pcs.
0.705785 $
1000 pcs.
0.666574 $
3000 pcs.
0.627364 $
10000 pcs.
0.588154 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1511180430 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Molex made. The 1511180430 is using SPQ 2000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | Milli-Grid 151118 |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.142" (3.60mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.252" (6.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7μin (2.00μm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Guide, Glow Wire Compliant, Pick and Place |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 125VAC |
| Mated Stacking Heights | 8.14mm, 8.35mm |
| Contact Finish Thickness - Post | 78.7μin (2.00μm) |
| Applications | - |
| Base Product Number | 151118 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 2000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
