CONN HDR .100 12POS | Samtec Inc.

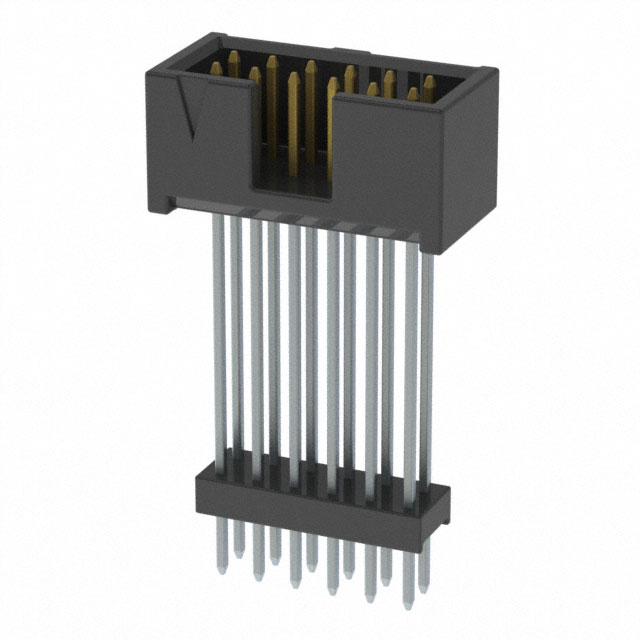

Connector Header Through Hole 12 position 0.100 (2.54mm)
Images may differ
Unit Price ($ / pc.)
2.46 $
*
Available: 1029 pcs.
Next delivery: 20559 pcs.
Available in 9 Weeks
Manufacturer Leadtime: 5 Weeks **
Quantity
Price per unit*
100 pcs.
2.337 $
500 pcs.
2.214 $
1000 pcs.
2.091 $
3000 pcs.
1.968 $
10000 pcs.
1.845 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The ZSS-106-08-L-D-1165 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Samtec Inc. made. The ZSS-106-08-L-D-1165 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Samtec Inc. |
| Series | Flex Stack, ZSS |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header, Elevated |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.250" (6.35mm) |
| Contact Length - Post | 0.165" (4.19mm) |
| Overall Contact Length | 1.330" (33.78mm) |
| Insulation Height | 1.165" (29.59mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0μin (0.25μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyester, Glass Filled |
| Features | Keying Slot |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | ZSS-106 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
