CONN HEADER VERT 26POS 2MM | Harwin Inc.
Connector Header Through Hole 26 position 0.079 (2.00mm)

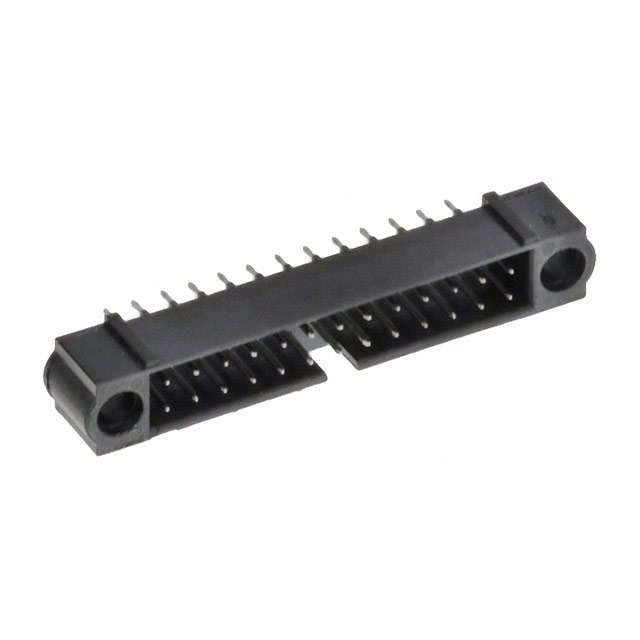

Images may differ
Unit Price ($ / pc.)
$
*
Available: 1032 pcs.
Next delivery: 20622 pcs.
Available in 9 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The M225-5202646 is a common industry Headers, Male Pins housed in a RoHS compliant Standar package by Harwin Inc. made. The M225-5202646 is using SPQ 7 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | M225 |
| Package | Tube |
| Product Status | Obsolete |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-In |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1μin (3.00μm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Mating Flange, Polarizing Key |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 118.1μin (3.00μm) |
| Applications | - |
| Base Product Number | M225-520 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 7 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
