SMD FEMALE CONNECTOR, NOMINAL CU | Phoenix Contact

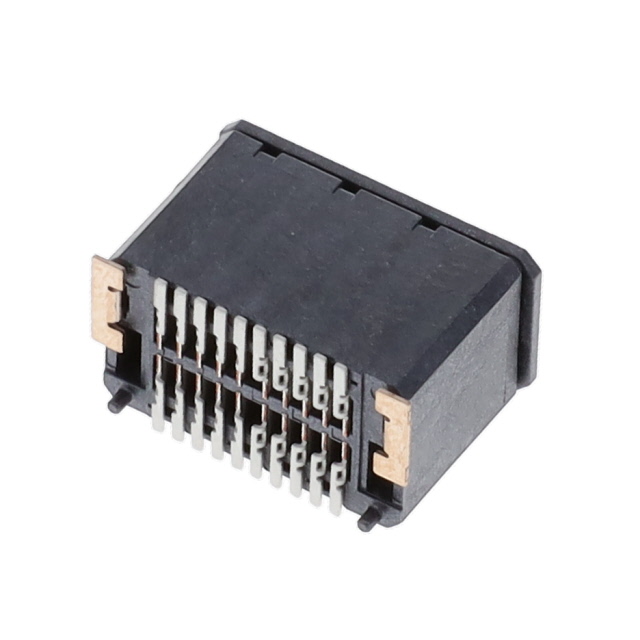

20 Position Receptacle Connector 0.031 (0.80mm) Surface Mount Gold
Images may differ
Unit Price ($ / pc.)
2.68294 $
*
Available: 173 pcs.
Next delivery: 2583 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
2.548793 $
500 pcs.
2.414646 $
1000 pcs.
2.280499 $
3000 pcs.
2.146352 $
10000 pcs.
2.012205 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 1061583 is a common industry Headers, Receptacles, Female Sockets housed in a RoHS compliant Standar package by Phoenix Contact made. The 1061583 is using SPQ 250 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Phoenix Contact |
| Series | COMBICON FP |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.056" (1.42mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.309" (7.85mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | 9mm, 10.5mm |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Contact Shape | Rectangular |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | - |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 250 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
