CONN RCPT 45POS 0.079 GOLD PCB | Harwin Inc.
45 Position Receptacle Connector 0.079 (2.00mm) Through Hole Gold

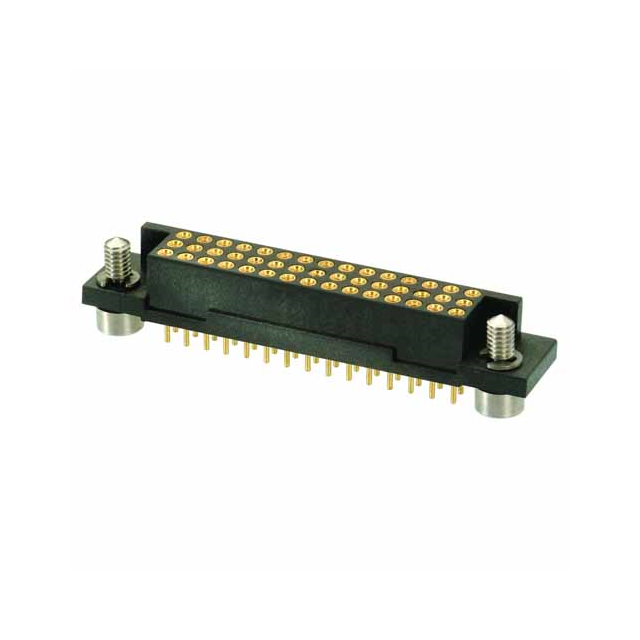

Images may differ
Unit Price ($ / pc.)
13.800665 $
*
Available: 442 pcs.
Next delivery: 8232 pcs.
Available in 3 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
13.110632 $
500 pcs.
12.420599 $
1000 pcs.
11.730565 $
3000 pcs.
11.040532 $
10000 pcs.
10.350499 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The M80-7044501 is a common industry Headers, Receptacles, Female Sockets housed in a RoHS compliant Standar package by Harwin Inc. made. The M80-7044501 is using SPQ 15 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | Datamate J-Tek |
| Package | Tray |
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 45 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0μin (0.30μm) |
| Insulation Color | Black |
| Insulation Height | 0.247" (6.28mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Jackscrews, Mating Flange, Mounting Flange |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 157.5μin (4.00μm) |
| Base Product Number | M80-704 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 15 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
