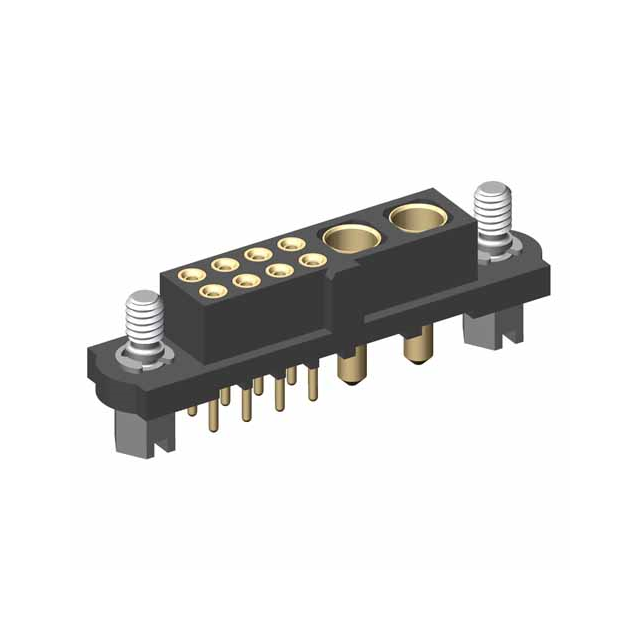

DATAMATE MIX-TEK SEMI-CUSTOM CON | Harwin Inc.

10 Position Receptacle Connector Through Hole Gold

default L
Images may differ

MPN: M80-4T10805F1-02-321-00-000

ManufacturerHarwin Inc.
Innovo Part NO.M80-4T10805F1-02-321-00-000_4840452
SeriesDatamate Mix-Tek
Package / CaseStandar
SPQ.10
Moisture Sensitivity LevelMSL 1
CertificateCE, CCC, ROHS
Product StatusAvailable
CategoriesConnectors, Interconnects >> Rectangular Connectors >> Headers, Receptacles, Female Sockets
Technical specifications Download Datasheet
Unit Price ($ / pc.)
$ *
Available: 534 pcs.
Next delivery: 10164 pcs.
Available in 4 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus shipping costs
**Subject to prior sale
Add to BOM list Print to PDF
Description
Technical specifications
Download
Logistics
Compliance
Description

The M80-4T10805F1-02-321-00-000 is a common industry Headers, Receptacles, Female Sockets housed in a RoHS compliant Standar package by Harwin Inc. made. The M80-4T10805F1-02-321-00-000 is using SPQ 10 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com

Technical specifications
MfrHarwin Inc.
SeriesDatamate Mix-Tek
PackageTube
Product StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board
Number of Positions10
Number of Positions LoadedAll
Pitch - Mating-
Row Spacing - Mating-
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeScrew Lock
Contact Finish - MatingGold
Contact Finish Thickness - Mating12.0μin (0.30μm)
Insulation ColorBlack
Insulation Height0.205" (5.20mm)
Contact Length - Post0.118" (3.00mm)
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostGold
Mated Stacking Heights-
Ingress Protection-
FeaturesPolarizing Key
Current Rating (Amps)3A
Voltage Rating800VAC/DC
Applications-
Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled
Contact ShapeCircular
Contact MaterialCopper Alloy
Contact Finish Thickness - Post12.0μin (0.30μm)
Base Product NumberM80-4T1
Logistics
Country of originHK
Customs tariff number-
Original PackagingReel with 10 pieces
Compliance
RoHS conformYes
HTSUS8504.40.9580
SVHC freeYes
