CONN RCPT 22POS 0.059 GOLD SMD | Molex

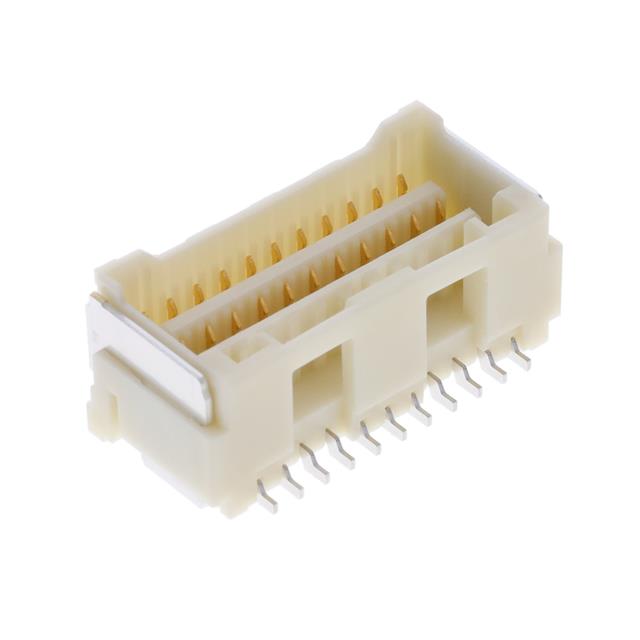

22 Position Receptacle Connector 0.059 (1.50mm) Surface Mount Gold
Images may differ
Unit Price ($ / pc.)
0.95 $
*
Available: 659 pcs.
Next delivery: 12789 pcs.
Available in 6 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0.9025 $
500 pcs.
0.855 $
1000 pcs.
0.8075 $
3000 pcs.
0.76 $
10000 pcs.
0.7125 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 5054062260 is a common industry Headers, Receptacles, Female Sockets housed in a RoHS compliant Standar package by Molex made. The 5054062260 is using SPQ 450 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | CLIK-Mate 505406 |
| Package | Tape & Reel (TR)"},{"id":"2","value":"Cut Tape (CT) |
| Product Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Cable/Wire |
| Number of Positions | 22 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00μin (0.203μm) |
| Insulation Color | Beige |
| Insulation Height | 0.344" (8.75mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Insulation Material | Resin |
| Contact Shape | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | 39.4μin (1.00μm) |
| Base Product Number | 505406 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 450 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
