CONN RCPT 30POS 0.1 GOLD SMD | Harwin Inc.

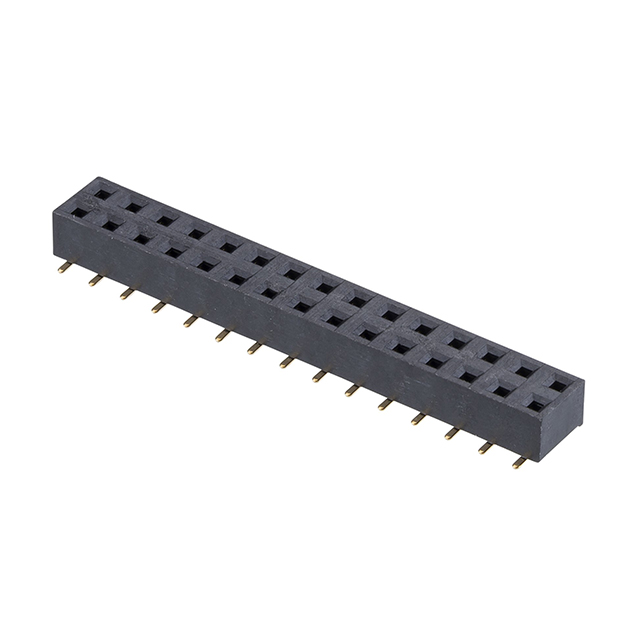

30 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Images may differ
Unit Price ($ / pc.)
1.513565 $
*
Available: 706 pcs.
Next delivery: 13776 pcs.
Available in 6 Weeks
Manufacturer Leadtime: 17 Weeks **
Quantity
Price per unit*
100 pcs.
1.437887 $
500 pcs.
1.362209 $
1000 pcs.
1.28653 $
3000 pcs.
1.210852 $
10000 pcs.
1.135174 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The M20-7811545R is a common industry Headers, Receptacles, Female Sockets housed in a RoHS compliant Standar package by Harwin Inc. made. The M20-7811545R is using SPQ 600 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | M20 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.59μin (0.015μm) |
| Insulation Color | Black |
| Insulation Height | 0.140" (3.56mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Applications | General Purpose |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | 5.90μin (0.150μm) |
| Base Product Number | M20-781 |
