CONN RCPT 2MM 12POS PCB | Harwin Inc.

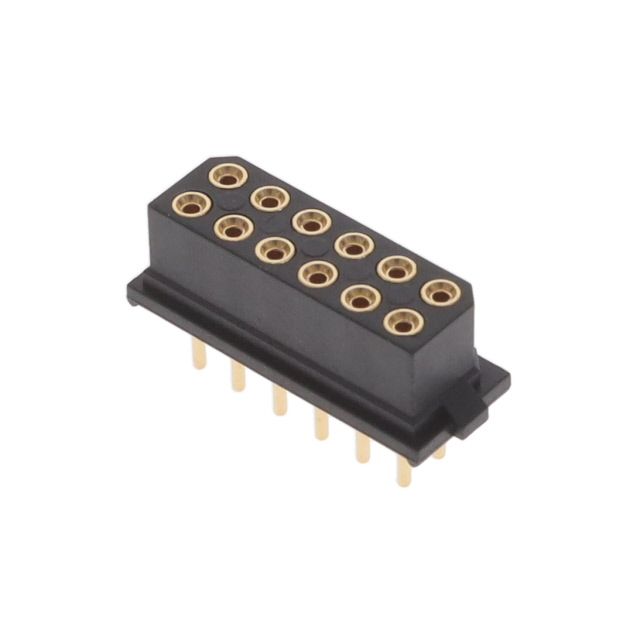

12 Position Receptacle Connector 0.079 (2.00mm) Through Hole Gold
Images may differ
Unit Price ($ / pc.)
3.045 $
*
Available: 1042 pcs.
Next delivery: 20832 pcs.
Available in 9 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
2.89275 $
500 pcs.
2.7405 $
1000 pcs.
2.58825 $
3000 pcs.
2.436 $
10000 pcs.
2.28375 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The M80-8501245R is a common industry Headers, Receptacles, Female Sockets housed in a RoHS compliant Standar package by Harwin Inc. made. The M80-8501245R is using SPQ 350 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | Datamate L-Tek |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0μin (0.30μm) |
| Insulation Color | Black |
| Insulation Height | 0.202" (5.14mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | 7.23mm, 7.85mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 800V |
| Applications | Automotive, General Purpose, Military |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 10.0μin (0.25μm) |
| Base Product Number | M80-850 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 350 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
