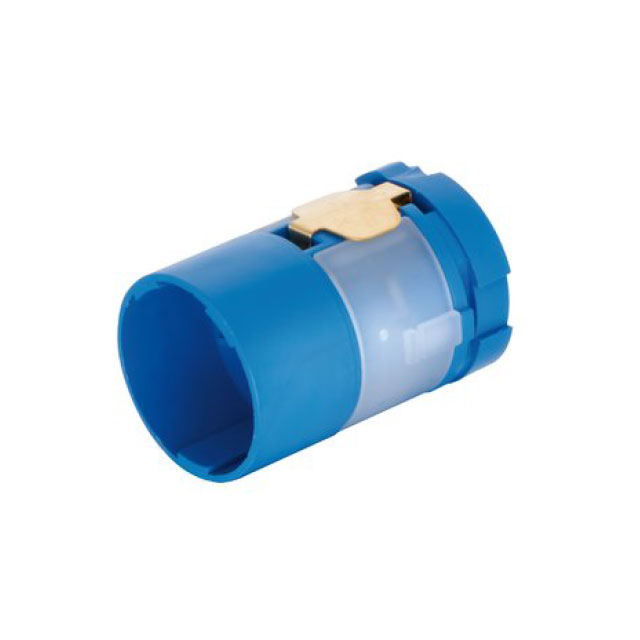

CONN INSERT MALE 6POS | HARTING
6 (5 + PE) Position Circular Connector Insert
Images may differ
Unit Price ($ / pc.)
3.91572 $
*
Available: 1015 pcs.
Next delivery: 20265 pcs.
Available in 9 Weeks
Manufacturer Leadtime: 8 Weeks **
Quantity
Price per unit*
100 pcs.
3.719934 $
500 pcs.
3.524148 $
1000 pcs.
3.328362 $
3000 pcs.
3.132576 $
10000 pcs.
2.93679 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 9156063001 is a common industry Circular Connector Housings housed in a RoHS compliant Standar package by HARTING made. The 9156063001 is using SPQ 5 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | HARTING |
| Series | Han M23 Power |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Insert |
| Type | For Male Pins |
| Number of Positions | 6 (5 + PE) |
| Shell Size - Insert | M23-6 |
| Shell Size, MIL | - |
| Contact Type | Crimp |
| Contact Size | - |
| Mounting Type | - |
| Mounting Feature | - |
| Fastening Type | - |
| Orientation | Keyed |
| Shell Material | - |
| Shell Finish | - |
| Housing Color | Blue |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | - |
| Shielding | Unshielded |
| Note | Contacts Not Included; Insert Only, Requires Shell |
| Includes | - |
| Insert Material | Polyamide (PA), Nylon |
| Contact Shape | Circular |
| Operating Temperature | -40°C ~ 125°C |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 5 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
