CONN PC PIN CIRC 0.032DIA TIN | Harwin Inc.

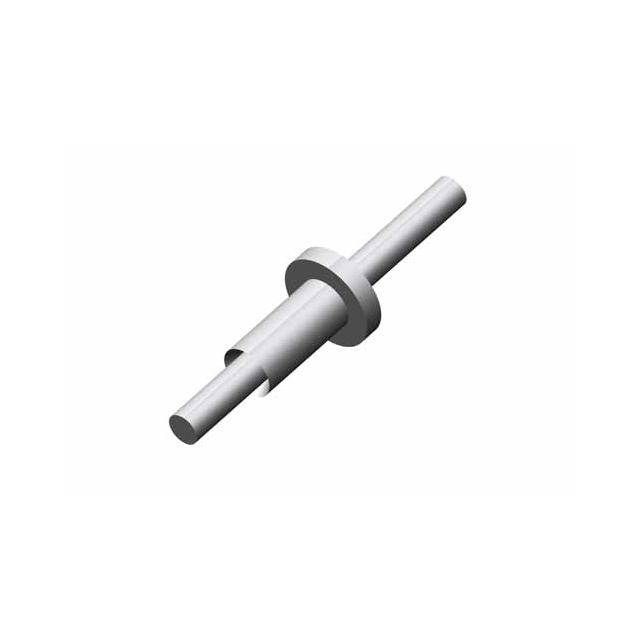

PC Pin Terminal Connector Through Hole Tin 0.032 (0.81mm) Dia
Images may differ
Unit Price ($ / pc.)
$
*
Available: 441 pcs.
Next delivery: 8211 pcs.
Available in 3 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The H2106-01 is a common industry PC Pin, Single Post Connectors housed in a RoHS compliant Standar package by Harwin Inc. made. The H2106-01 is using SPQ 1000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | - |
| Package | Bulk |
| Product Status | Obsolete |
| Terminal Type | PC Pin |
| Terminal Style | Double End |
| Pin Size - Above Flange | 0.032 (0.81mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.156 (3.96mm) |
| Length - Below Flange | 0.199 (5.05mm) |
| Length - Overall | 0.375 (9.53mm) |
| Flange Diameter | 0.094 (2.39mm) |
| Mounting Hole Diameter | 0.052 ~ 0.056 (1.32mm ~ 1.42mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.094 (2.39mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Material - Insulation | - |
| Insulation Color | - |
| Base Product Number | H2106 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
