CONN PIN RCPT .016-.020 SOLDER | Harwin Inc.
Pin Receptacle Connector 0.016 ~ 0.020 (0.41mm ~ 0.51mm) No Tail Solder

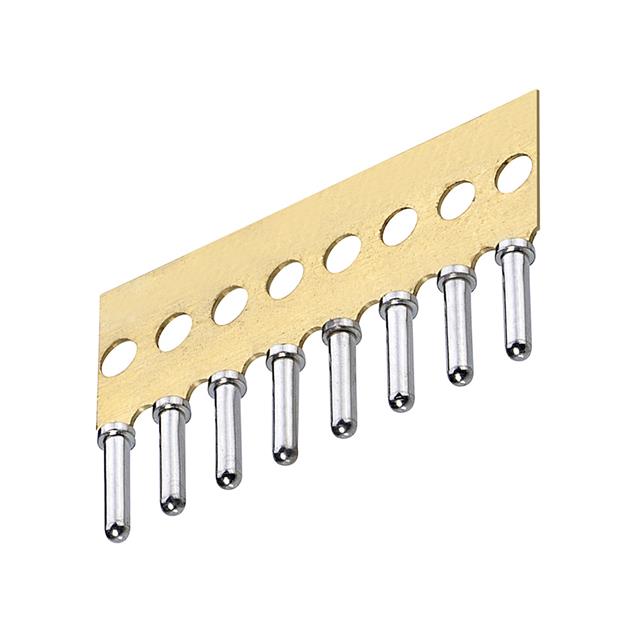

Images may differ
Unit Price ($ / pc.)
$
*
Available: 441 pcs.
Next delivery: 8211 pcs.
Available in 3 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The D01-9820801 is a common industry PC Pin Receptacles, Socket Connectors housed in a RoHS compliant Standar package by Harwin Inc. made. The D01-9820801 is using SPQ 50 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Tail Type | No Tail |
| Termination | Solder |
| Length - Overall | 0.193 (4.90mm) |
| Accepts Pin Diameter | 0.016 ~ 0.020 (0.41mm ~ 0.51mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | 0.043 (1.09mm) |
| Mounting Hole Diameter | 0.039 ~ 0.043 (0.99mm ~ 1.09mm) |
| Flange Diameter | 0.057 (1.45mm) |
| Tail Diameter | - |
| Socket Depth | 0.175 (4.45mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94μin (0.10μm) |
| Features | - |
| Operating Temperature | -55°C ~ 100°C |
| Board Thickness | - |
| Insertion Force | 2.00N ~ 6.00N |
| Base Product Number | D01-982 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 50 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
