PCB SOCKET | Harwin Inc.

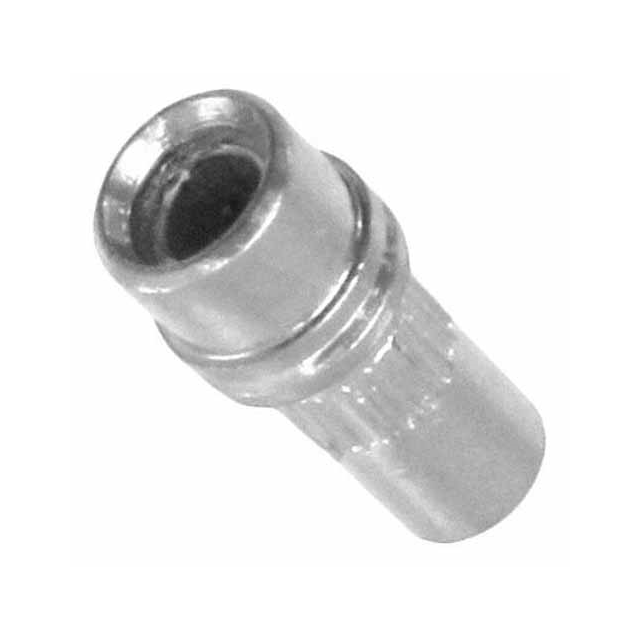

Pin Receptacle Connector 0.024" ~ 0.033" (0.60mm ~ 0.85mm) No Tail Press-Fit, Knurled
Images may differ
Unit Price ($ / pc.)
$
*
Available: 1032 pcs.
Next delivery: 20622 pcs.
Available in 9 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The H8502-46 is a common industry PC Pin Receptacles, Socket Connectors housed in a RoHS compliant Standar package by Harwin Inc. made. The H8502-46 is using SPQ 1000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Harwin Inc. |
| Series | - |
| Package | Bulk |
| Product Status | Obsolete |
| Tail Type | No Tail |
| Termination | Press-Fit, Knurled |
| Length - Overall | 0.232" (5.89mm) |
| Accepts Pin Diameter | 0.024" ~ 0.033" (0.60mm ~ 0.85mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | - |
| Mounting Hole Diameter | 0.075" ~ 0.077" (1.91mm ~ 1.96mm) |
| Flange Diameter | 0.105" (2.67mm) |
| Tail Diameter | - |
| Socket Depth | 0.183" (4.65mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Tin |
| Contact Finish Thickness | 157.5μin (4.00μm) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Board Thickness | - |
| Insertion Force | 1.50N ~ 5.01N |
| Base Product Number | H8502 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
