3.50 MM TERMINAL BLOCK PLUG, HOR | Würth Elektronik

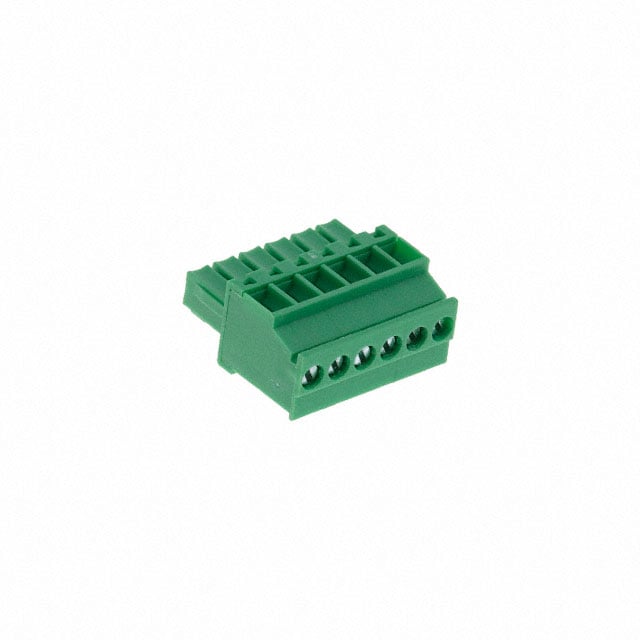

6 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 270° Free Hanging (In-Line)
Images may differ
Unit Price ($ / pc.)
1.488 $
*
Available: 164 pcs.
Next delivery: 2394 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 17 Weeks **
Quantity
Price per unit*
100 pcs.
1.4136 $
500 pcs.
1.3392 $
1000 pcs.
1.2648 $
3000 pcs.
1.1904 $
10000 pcs.
1.116 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 6.91366E+11 is a common industry Headers, Plugs and Sockets housed in a RoHS compliant Standar package by Würth Elektronik made. The 6.91366E+11 is using SPQ 190 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Würth Elektronik |
| Series | WR-TBL Series 3661 |
| Package | Bulk |
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 270° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm2 | 0.08-1.31mm2 |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | - |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | M2 |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) |
| Wire Strip Length | 6-7mm |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | - |
| Insulation Height | 0.409" (10.40mm) |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 190 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
