TERM BLOCK PLUG 22POS STR 5.08MM | Würth Elektronik

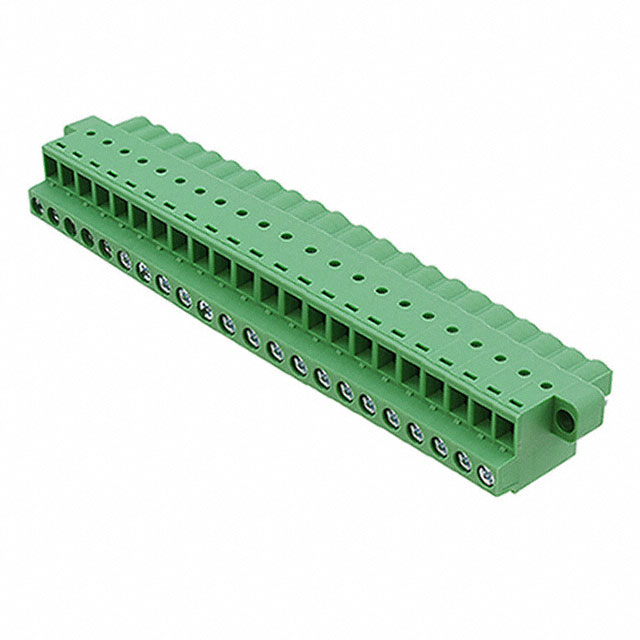

22 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Images may differ
Unit Price ($ / pc.)
7.552 $
*
Available: 434 pcs.
Next delivery: 8064 pcs.
Available in 3 Weeks
Manufacturer Leadtime: 17 Weeks **
Quantity
Price per unit*
100 pcs.
7.1744 $
500 pcs.
6.7968 $
1000 pcs.
6.4192 $
3000 pcs.
6.0416 $
10000 pcs.
5.664 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 691374500022B is a common industry Headers, Plugs and Sockets housed in a RoHS compliant Standar package by Würth Elektronik made. The 691374500022B is using SPQ 20 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Würth Elektronik |
| Series | WR-TBL Series 374B |
| Package | Tray |
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 22 |
| Positions Per Level | 22 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Pressure Clip |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Current - UL | 16 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm2 | 0.2-3.3mm2 |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | - |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | M2.6 |
| Torque - Screw | 0.45 Nm (4.0 Lb-In) |
| Wire Strip Length | 10mm |
| Contact Material | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | - |
| Insulation Height | 0.587" (14.91mm) |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 20 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
