CONN FFC BOTTOM 28POS 0.5MM R/A | JST Sales America Inc.
28 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

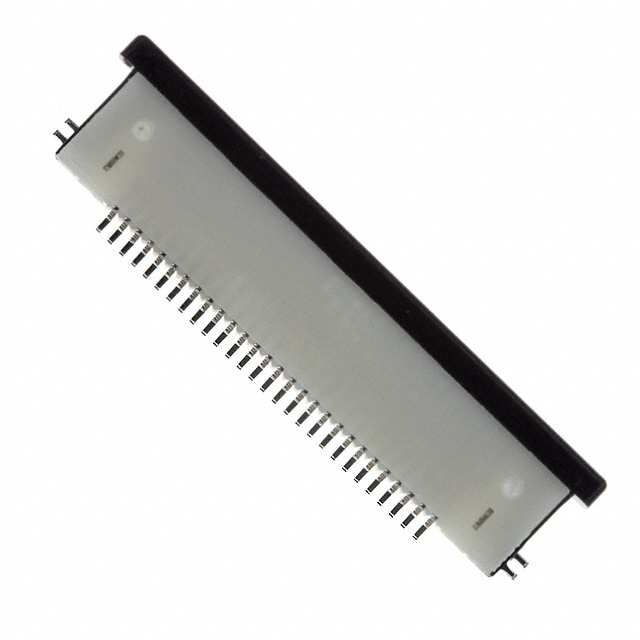

(SN).JPG)
Images may differ
Unit Price ($ / pc.)
0.38845 $
*
Available: 213 pcs.
Next delivery: 3423 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
0.369028 $
500 pcs.
0.349605 $
1000 pcs.
0.330183 $
3000 pcs.
0.31076 $
10000 pcs.
0.291338 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 28FLZ-RSM2-TB is a common industry FFC, FPC (Flat Flexible) Connector Assemblies housed in a RoHS compliant Standar package by JST Sales America Inc. made. The 28FLZ-RSM2-TB is using SPQ 2800 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | JST Sales America Inc. |
| Series | FLZ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 28 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Natural |
| Actuator Color | Black |
| Mating Cycles | - |
| Base Product Number | 28FLZ-RS |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 2800 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
