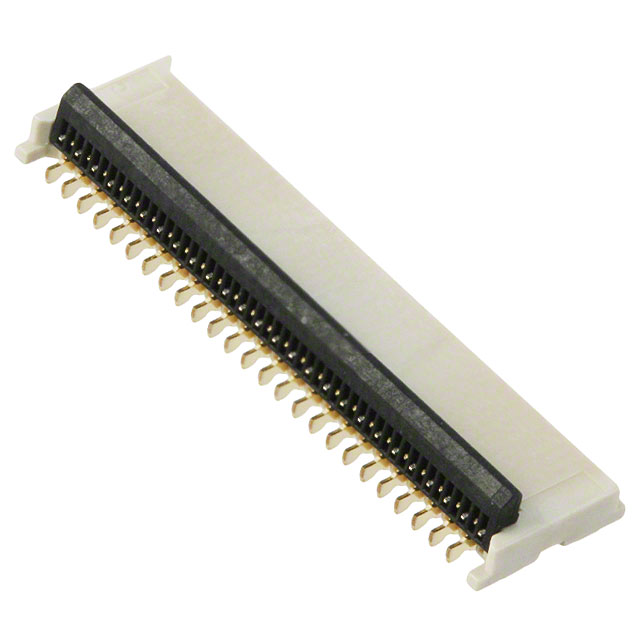

CONN FPC TOP 51POS 0.3MM R/A | JAE Electronics
51 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Images may differ
Unit Price ($ / pc.)
$
*
Available: 246 pcs.
Next delivery: 4116 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The FB8S051JA1 is a common industry FFC, FPC (Flat Flexible) Connector Assemblies housed in a RoHS compliant Standar package by JAE Electronics made. The FB8S051JA1 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | JAE Electronics |
| Series | FB8 |
| Package | Bulk |
| Product Status | Obsolete |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 51 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.047" (1.20mm) |
| Locking Feature | Rotary Lock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.35A per Contact |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Black |
| Mating Cycles | 20 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
