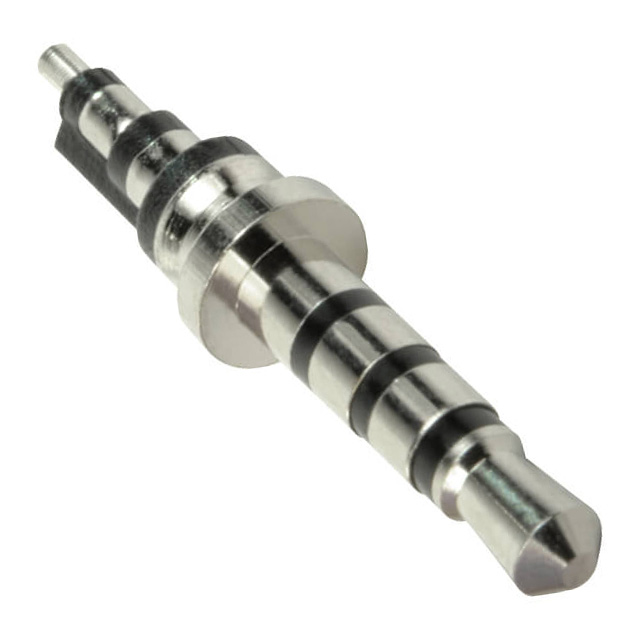

AUDIO PLUG, 2.5 MM, STRAIGHT, 4 | CUI Devices
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
Images may differ
Unit Price ($ / pc.)
0.16523 $
*
Available: 998 pcs.
Next delivery: 19908 pcs.
Available in 9 Weeks
Manufacturer Leadtime: 15 Weeks **
Quantity
Price per unit*
100 pcs.
0.156969 $
500 pcs.
0.148707 $
1000 pcs.
0.140446 $
3000 pcs.
0.132184 $
10000 pcs.
0.123923 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The SP-2541 is a common industry Audio Connectors housed in a RoHS compliant Standar package by CUI Devices made. The SP-2541 is using SPQ 1000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | CUI Devices |
| Series | - |
| Package | Bag |
| Product Status | Active |
| Connector Type | Phone Plug |
| Gender | Male |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Actual Diameter | 0.091" (2.30mm) |
| Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Operating Temperature | -25°C ~ 70°C |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 1 A |
| Mating Length/Depth | 0.433" (11.00mm) |
| Contact Material - Plating | Nickel |
| Body Material | Brass |
| Body Color | Silver |
| Includes | - |
| Housing Material | - |
| Contact Material | Brass |
| Cable Opening | - |
| Panel Hole Size | - |
| Thread Size | - |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
