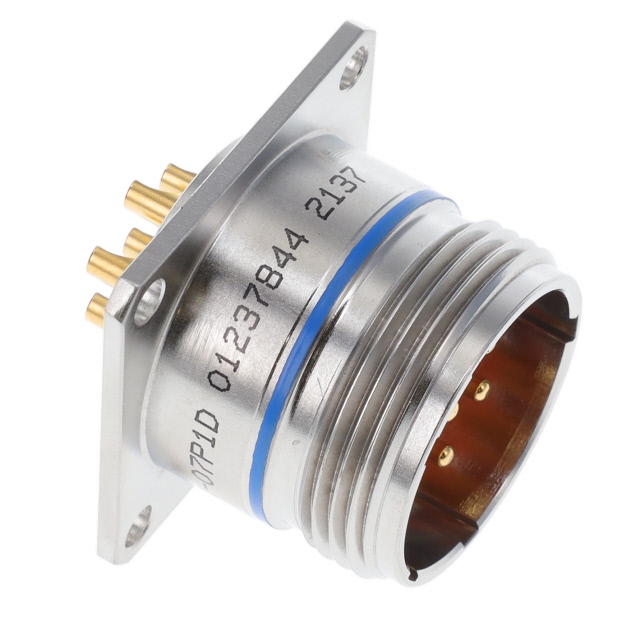

CONN RCPT MALE 7P GOLD SLDR CUP | Amphenol Aerospace Operations
7 Position Circular Connector Receptacle, Male Pins Solder Cup
Images may differ
Unit Price ($ / pc.)
134.0476 $
*
Available: 185 pcs.
Next delivery: 2835 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 20 Weeks **
Quantity
Price per unit*
100 pcs.
127.34522 $
500 pcs.
120.64284 $
1000 pcs.
113.94046 $
3000 pcs.
107.23808 $
10000 pcs.
100.5357 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The BTY-1714-07P1D is a common industry Circular Connector Assemblies housed in a RoHS compliant Standar package by Amphenol Aerospace Operations made. The BTY-1714-07P1D is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Amphenol Aerospace Operations |
| Series | Military, MIL-DTL-83723 Series III |
| Package | Bag |
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 7 |
| Shell Size - Insert | 14-7 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | Environment Resistant |
| Material Flammability Rating | - |
| Features | Hermetically Sealed |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |
| Voltage Rating | 600VAC |
| Cable Opening | - |
| Operating Temperature | - |
| Backshell Material, Plating | - |
| Contact Material | - |
| Contact Finish Thickness - Mating | 50.0μin (1.27μm) |
| Insert Material | - |
| Applications | Aerospace |
| Base Product Number | BTY-17 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
