HERMETIC CIRCULAR MIL-SPEC CONNE | Amphenol Aerospace Operations

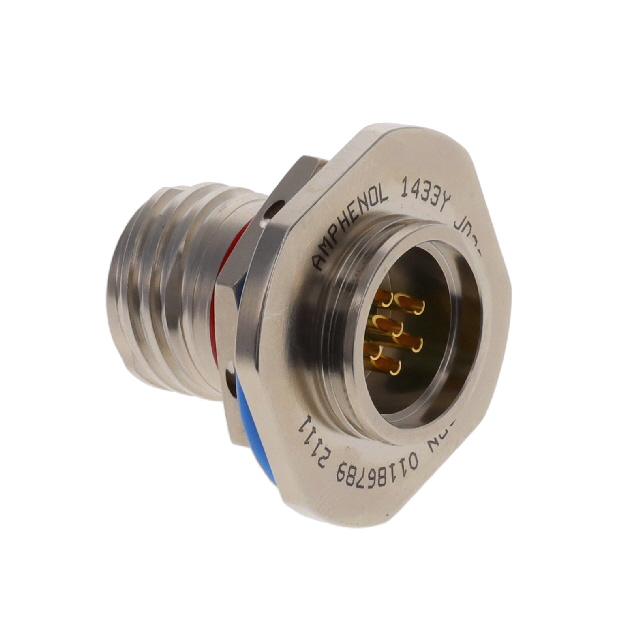

6 Position Circular Connector Receptacle, Male Pins Solder Cup
Images may differ
Unit Price ($ / pc.)
55.2849 $
*
Available: 185 pcs.
Next delivery: 2835 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 22 Weeks **
Quantity
Price per unit*
100 pcs.
52.520655 $
500 pcs.
49.75641 $
1000 pcs.
46.992165 $
3000 pcs.
44.22792 $
10000 pcs.
41.463675 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The D38999/23NB98PN is a common industry Circular Connector Assemblies housed in a RoHS compliant Standar package by Amphenol Aerospace Operations made. The D38999/23NB98PN is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Amphenol Aerospace Operations |
| Series | Military, MIL-DTL-38999 Series III, Tri-Start TV |
| Package | Bag |
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 6 |
| Shell Size - Insert | 11-98 |
| Shell Size, MIL | B |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Features | Hermetically Sealed |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | 600VAC, 850VDC |
| Cable Opening | - |
| Operating Temperature | -65°C ~ 200°C |
| Backshell Material, Plating | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 50.0μin (1.27μm) |
| Insert Material | - |
| Applications | Aerospace, Aviation, Marine, Military |
| Base Product Number | D38999/23NB |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
