SHIELDED MULTI-CON-X CONNECTORS, | Conxall/Switchcraft

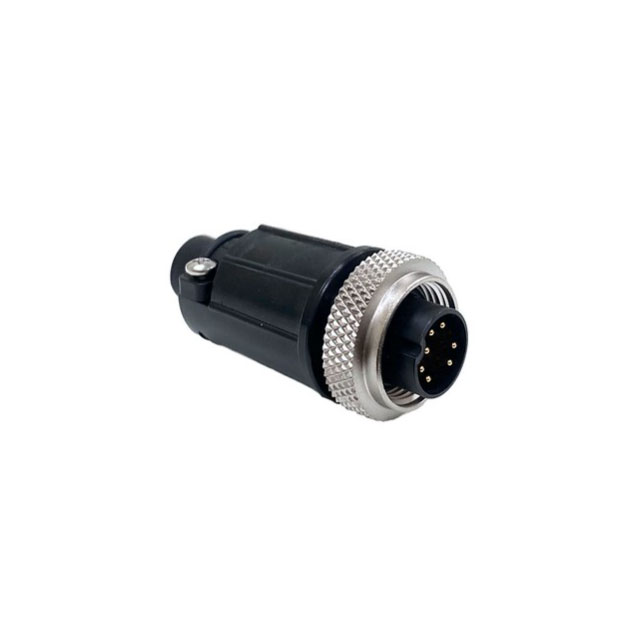

7 Position Circular Connector Plug, Male Pins Solder Cup
Images may differ
Unit Price ($ / pc.)
18.0866 $
*
Available: 193 pcs.
Next delivery: 3003 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 12 Weeks **
Quantity
Price per unit*
100 pcs.
17.18227 $
500 pcs.
16.27794 $
1000 pcs.
15.37361 $
3000 pcs.
14.46928 $
10000 pcs.
13.56495 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The SF3282-7PG-520 is a common industry Circular Connector Assemblies housed in a RoHS compliant Standar package by Conxall/Switchcraft made. The SF3282-7PG-520 is using SPQ 100 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Conxall/Switchcraft |
| Series | Shielded Multi-Con-X |
| Package | Bag |
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 7 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Shielded |
| Current Rating (Amps) | 5.6A |
| Voltage Rating | - |
| Cable Opening | 0.200" (5.08mm) |
| Operating Temperature | -40°C ~ 120°C |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Contact Material | Brass |
| Contact Finish Thickness - Mating | - |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Applications | - |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 100 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
